Purchase D7814, In-stock D7814 From SeekIC.
MFG:NEC D/C:DIP
Part Number: D7814
MFG: NEC
D/C: DIP
Description: The AD7814 is a complete temperature monitoring system in an SOT-23 package or 8-lead SOIC packag...
- Table of contents:
D7814
-
Suppliers
DataSheet
General Description
D7814 General Description
The AD7814 is a complete temperature monitoring system in an SOT-23 package or 8-lead SOIC package. It contains a bandgap temperature sensor and 10-bit ADC to monitor and digitize the temperature reading to a resolution of +0.25°C.
The AD7814 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI(TM), QSPI and MICROWIRE(TM) protocol and is also compatible with DSPs. The part features a standby mode that is controlled via the serial interface.
The AD7814's wide supply voltage range, low supply current and SPI-compatible interface, make it ideal for a variety of applications, including personal computers, office equipment, and domestic appliances.
D7814 Maximum Ratings
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Digital Input Voltage to GND . . . . . . . 0.3 V to VDD + 0.3 V
Digital Output Voltage to GND . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range . . . . . . . . . . 55°C to +125°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . +150°C
SOT-23, Power Dissipation . . . . . . . . . . . . . . . . . . . . 450 mW
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 240°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
SOIC Package, Power Dissipation . . . . . . . . . . . . . . 450 mW
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 206°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Digital Input Voltage to GND . . . . . . . 0.3 V to VDD + 0.3 V
Digital Output Voltage to GND . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range . . . . . . . . . . 55°C to +125°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . +150°C
SOT-23, Power Dissipation . . . . . . . . . . . . . . . . . . . . 450 mW
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 240°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
SOIC Package, Power Dissipation . . . . . . . . . . . . . . 450 mW
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . 206°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
D7814 Features
10-Bit Temperature-to-Digital Converter 55to +125 Operating Temperature Range ± 2C Accuracy
SPI- and DSP-Compatible Serial Interfac
Shutdown Mode
Space-Saving SOT-23 Package
D7814 Typical Application
Hard Disk Drives
Personal Computers
Electronic Test Equipme
Office Equipment
Domestic Appliances
Process Control
Personal Computers
Electronic Test Equipme
Office Equipment
Domestic Appliances
Process Control
D7814 Connection Diagram
D780016YGF022
PDF/DataSheet Download
- Datasheet: D780016YGF022
- File Size: 219224 KB
- Manufacturer: NEC [NEC]
- Click here to Download
- ·D780206GF
- NEC [NEC]
- 8-Bit Single-Chip Microcontrollers
- 2556609 KB
- ·D780226GF
- NEC [NEC]
- MOS INTERGRATED CIRCUIT
- 1788465 KB
- ·D780232
- NEC [NEC]
- 8-BIT SINGLE-CHIP MICROCONTROLLER
- 353889 KB
- ·D78044HGF
- NEC [NEC]
- 8-BIT SINGLE-CHIP MICROCOMPUTER
- 565699 KB
- ·D78054
- NEC [NEC]
- 8-BIT SINGLE-CHIP MICROCOMPUTER
- 589978 KB
- ·D78054GC013
- NEC [NEC]
- 8-BIT SINGLE-CHIP MICROCOMPUTER
- 589978 KB
- ·D7810
- NEC [NEC]
- 8 BIT SINGLE CHIP NMOS MICROCOMPUTERS WITH A/D CONVERTER
- 1417430 KB
- ·D78320L
- 589481 KB
D7814 Relative Products
D78
The D78 and DP78 Series of low-power, fixedfrequency, linear active filters are high performance, 8-pole filters in a compact package. These Butterworth and Bessel low-pass and Butterworth high-pass filters (D78 only) combine linear active filter design with...
D76H6B-2.5KHZ
The D76H6B-2.5KHZ and DP76 Series of low-power, fixed-frequency, linear active filters are high performance,6-pole filters in a compact package. TheseButterworth and Bessel low-pass and Butterworthhigh-pass filters (D76 only) combine linear activefilter desi...
D75F
D75C
The D75C is a fixed inductors for surface mounting. Features of the D75C are:(1)low profile(3.0~5.1 mm max height); (2)inductance range:1-560H; (3)available in magnetically shielded or unshielded versions; (4)supplied on tape and reel for auto insertion ; (...
D75AS-20.0MHZ-T
OSC TCXO 20.000 MHZ 3.3V SMT

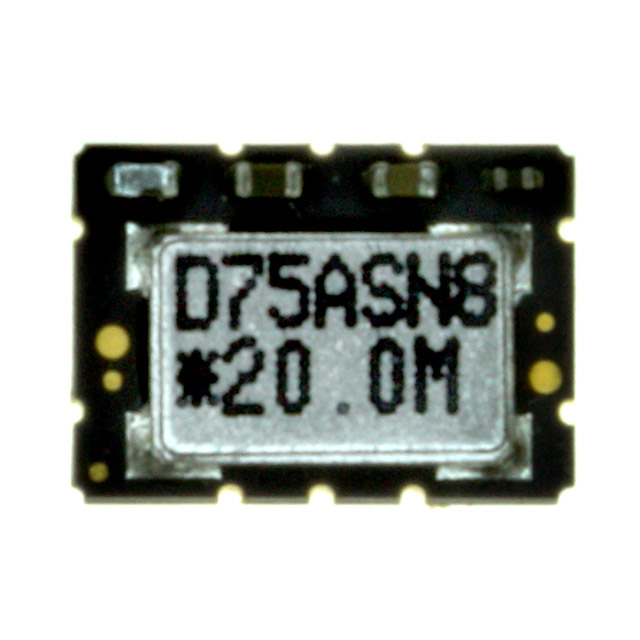

D75AS-20.0MHZ
