Part Number: DA2709









Description: The DA2709 is a general purpose, low-cost RF wideband amplifier IC. The input and output of the IC are internally ma...


Urgent Purchase

DA2709 General Description


The DA2709 is a general purpose, low-cost RF wideband amplifier IC. The input and output of the IC are internally matched to 50W for convenient cascading. Applications include IF and RF amplification in wireless voice and data communication products from DC to 3GHz. The DA2709 requires minimal external components for DC bias.

DA2709 Maximum Ratings

Parameter Symbol Rating Unit
Supply Current ICC 50 mA
Input RF Power PIN 5 dBm
Operating Temperature Range TA 40 to 85
Storage Temperature Range   60 to 150

DA2709 Features

·Preliminary
·DC to 3GHz Operation
·Internally Matched Input and Output
·22dB Small Signal Gain @2GHz
·P1dB = 8dBm @2GHz
·Single Positive Power Supply
·SOT363 surface-mount package

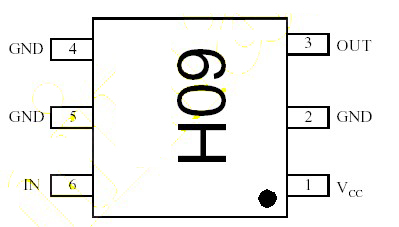

DA2709 Connection Diagram

DA2709 Connection Diagram

DA2709 datasheet
