Part Number: DA56-11EWA



MFG: .

Package Cooled: .

D/C: 07+

Description: LED displays feature high luminance and reliability. Our displays are available in different sizes ...


Urgent Purchase

DA56-11EWA General Description


LED displays feature high luminance and reliability. Our displays are available in different sizes and colors.

DA56-11EWA Maximum Ratings

Part Number: DA56-11EWA
Serial Number: DA5611
Anode cathode: common anode
Chip type: E
LED type:
Display housing: 19,05mm x 25,00mm
Display kind: Dual Digit
Display size: 14,22mm
Emitted color: Red
Lens color: White
Surface color: Gray
Lum in min (mcd): 1.900mcd
Lum in type (mcd): 8.000mcd
Reverse voltage: E
Forward current: 30mA
Peak forward current: 160mA*
Power Dissipation: 105mW
Op. temperature (°C): -40C to +85C
Storage temperature (°C): -40C to +85C
Forward volt type: 2,0V
Forward volt Max: 2,5V
Dom wave length: 625nm
Peak wave length (mA): 627nm
Spectral half width: 45nm
Comments: * 1/10 Duty Circle, 0,1ms Pulse Width
RoHS Status: Yes

DA56-11EWA Connection Diagram

DA56-11EWA datasheet


PDF/DataSheet Download

Find DA56-11EWA Suppliers

  • · EPCS4SI8
  •
  •
  • 226669 KB
  • EPCS4SI8 Datasheet Download
  • · UTC2411
  •
  •
  • 136508 KB
  • UTC2411 Datasheet Download
  • ·(M5M410092B)
  • Mitsubishi
  • 3D-RAM
  • 1268750 KB
  • (M5M410092B) Datasheet Download
  • ·_FCQ30A06
  • NIEC [Nihon Inter Electronics Corporation]
  • LOW FORWARD VOLTAGE DROP
  • 29515 KB
  • _FCQ30A06 Datasheet Download
  • ·0001.2501.PT
  •
  • Fuse
  • 40400 KB
  • 0001.2501.PT Datasheet Download
  • ·0001.2501.TR
  •
  • Fuse
  • 40400 KB
  • 0001.2501.TR Datasheet Download
  • ·0001.2502.PT
  •
  • Fuse
  • 40400 KB
  • 0001.2502.PT Datasheet Download
  • ·0001.2502.TR
  •
  • Fuse
  • 40400 KB
  • 0001.2502.TR Datasheet Download

Related Part Number

DA56-11EWA Relative Products

  • DA4-110-215US

    DA4-110-215US

    The DA4-110-215US has some points of features:(1)Switching wallmount power supply; (2)300 mA output; (3)Applications include NiCd battery charging and LEDs; (4)Available in US AC plug; (5)Universal AC input; (6)Regulated output; (7)Overload and short circuit...

  • DA4

    DA4

    The new DA4 Wall Mount Power Adapter offers 4 watts of power in a compact ergonomical wallmount package. It is available in three plug configurations to meet worldwide requirements.

  • DA3W3SA00LF

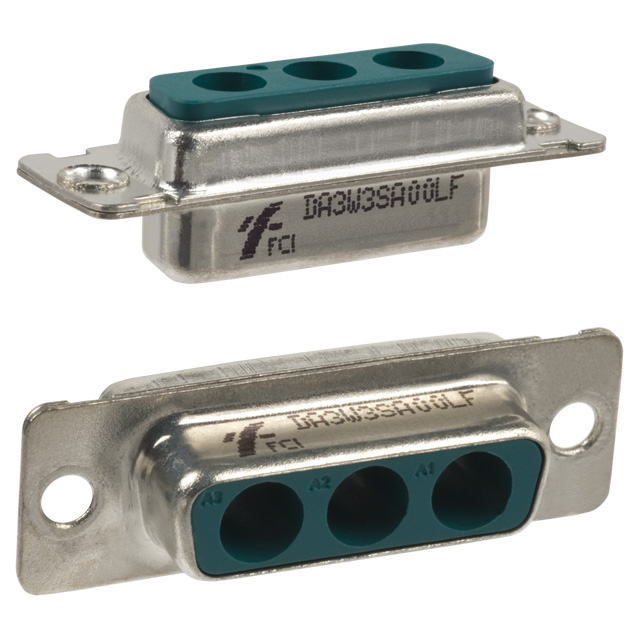

    DA3W3SA00LF

    CONN DSUB POWER RECEPT 3W3 A

  • DA3W3SA00

    DA3W3SA00

    DSUB POWER STB 3W3 SOCKET

  • DA3W3S300A40

    DA3W3S300A40

    DSUB POWER STB 3W3 SOCKET

  • DA3W3PA00LF

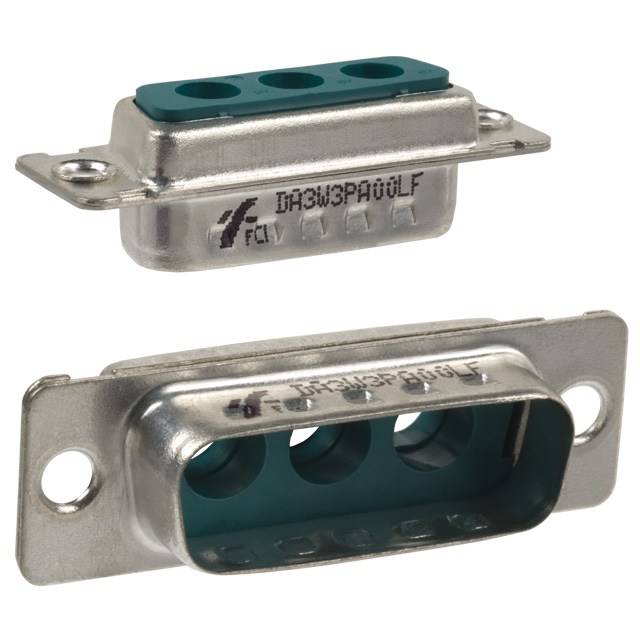

    DA3W3PA00LF
