Purchase DAC7624PB, In-stock DAC7624PB From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

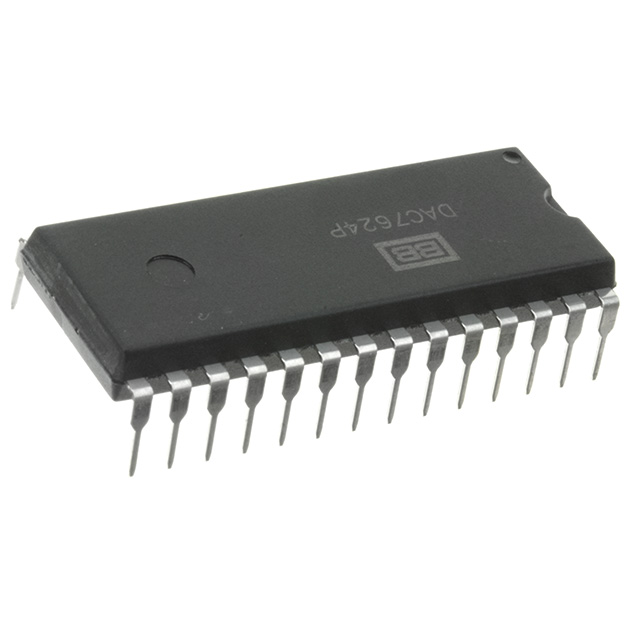

DAC7624PB

DAC Series Datasheet download

Five Points

Part Number: DAC7624PB

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC 12-BIT QUAD GP D/A 28-DIP

Price Break

1
25
100
250
500
1000

Unit Price

17.85000
16.66000
15.47000
15.17252
14.87500
14.69650

Extended Price

17.85
416.50
1547.00
3793.13
7437.50
14696.50

(All prices are in USD) Prices for reference only
Urgent Purchase

DAC7624PB General Description

IC 12-BIT QUAD GP D/A 28-DIP

DAC7624PB Parameters

Technical/Catalog InformationDAC7624PB
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Data InterfaceParallel
Number of Bits12
Operating Temperature-40°C ~ 85°C
Package / Case28-DIP (600 mil)
PackagingTube
Voltage Supply SourceSingle
Settling Time5s
Drawing Number296; 4202496; NTD; 28
Number of Converters4
Power Dissipation (Max)20mW
Number of Outputs and Type4 Voltage, Unipolar; 4 Voltage, Bipolar
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DAC7624PB
DAC7624PB

DAC7624PB datasheet

DAC7624PB
PDF/DataSheet Download

  • Datasheet: DAC7624PB
  • File Size: 318888 KB
  • Manufacturer: BURR-BROWN [Burr-Brown Corporation]
  • Click here to Download
