DAC8043A

Compact SO-8 and TSSOP Packages True 12-Bit Accuracy +5 V Operation @ <10 mA Fast 3-Wire Serial Input Fast 1 ms Settling Time 2.4 MHz 4-Quadrant Multiply BW Pin-for-Pin Upgrade for DAC8043 tandard and Rotated Pinout

Ideal for PLC Applications in Industrial Control rogrammable Amplifiers and Attenuators igitally Controlled Calibration and Filters otion Control Systems

VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +8 V
VREF to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±18 V
RFB to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ±18 V
Logic Inputs to GND . . . . . . . . . . . . . . ..0.3 V, VDD + 0.3 V
VIOUT to GND . . . . . . . . . . . . . . . . . . . ..0.3 V, VDD + 0.3 V
IOUT Short Circuit to GND . . . . . . . . . . . . . . . . . . . . ... 50 mA
Package Power Dissipation . . . . . . . . . . . .(TJ max TA)/qJA
Thermal Resistance qJA
8-Lead Plastic DIP Package (N-8) . . . . . . . . . . ..........103/W
8-Lead SOIC Package (SO-8) . . . . . . . . . . . . . . . ......158/W
TSSOP-8 Package (RU-8) . . . . . . . . . . . . . . . . . . .......240/W
Maximum Junction Temperature (TJ max) . . . . . . . . .....+150
Operating Temperature Range . . . . . . . . . . .... 40to +85
Storage Temperature Range . . . . . . . . . . . . ...65to +150
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . .....+300
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The DAC8043A is an improved high accuracy 12-bit multiplying igital-to-analog converter in space-saving 8-lead packages. eaturing serial input, double buffering and excellent analog
performance, the DAC8043A is ideal for applications where PC oard space is at a premium. Improved linearity and gain error erformance permit reduced parts count through the elimination
of trimming components. Separate input clock and loadM C control lines allow full user control of data loading and nalog output.

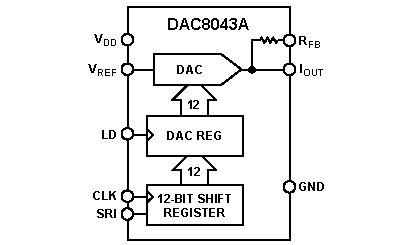

The DAC8043A circuit consists of a 12-bit serial-in/parallel-out shift register, 12-bit DAC register, a 12-bit CMOS DAC and control ogic. Serial data is clocked into the input register on the rising dge of e CLOCK pulse. When the new data word has been locked in, it is loaded into the DAC register with the LD input in. Data in the DAC register is converted to an output current y the D/A converter.

Consuming only 10 mA from a single +5 V power supply, the AC8043A is the ideal low power, small size, high performance olution to many application problems.

The DAC8043A is specified over the extended industrial 40 to +85) temperature range. DAC8043A is available n plastic DIP, and the low profile 1.75 mm height SO-8 surface ount packages. The DAC8043AFRU is available for ultracompact pplications in a thin 1.1 mm TSSOP-8 package.
