DAN222TL

Diodes (General Purpose, Power, Switching) SWITCH 80V 100MA

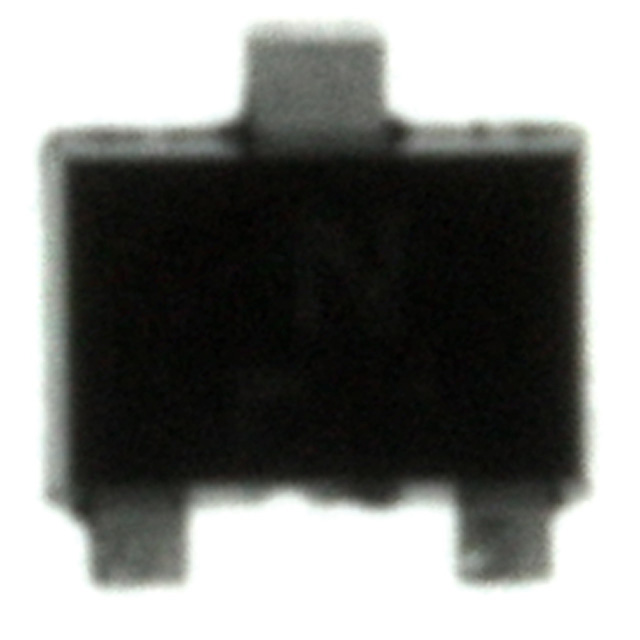

product image

DAN222TL Picture
See larger image
SeekIC No. : 00136888 Detail

DAN222TL: Diodes (General Purpose, Power, Switching) SWITCH 80V 100MA

DAN222TL Data Sheet

floor Price/Ceiling Price

US $ .06~.29 / Piece | Get Latest Price
Part Number:
DAN222TL
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~500
  • Unit Price
  • $.29
  • $.17
  • $.11
  • $.06
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Switching Diodes Peak Reverse Voltage : 80 V
Forward Continuous Current : 300 mA Max Surge Current : 4 A
Configuration : Dual Common Cathode Recovery Time : 4 ns
Forward Voltage Drop : 1.2 V Maximum Reverse Leakage Current : 0.1 uA
Maximum Power Dissipation : 150 mW Operating Temperature Range : + 150 C
Package / Case : SOT-416 Packaging : Reel

Description

Product : Switching Diodes
Packaging : Reel
Max Surge Current : 4 A
Peak Reverse Voltage : 80 V
Maximum Reverse Leakage Current : 0.1 uA
Recovery Time : 4 ns
Forward Continuous Current : 300 mA
Forward Voltage Drop : 1.2 V
Operating Temperature Range : + 150 C
Configuration : Dual Common Cathode
Package / Case : SOT-416
Maximum Power Dissipation : 150 mW


Parameters:

Technical/Catalog InformationDAN222TL
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)80V
Current - Average Rectified (Io) (per Diode)100mA
Voltage - Forward (Vf) (Max) @ If1.2V @ 100mA
Current - Reverse Leakage @ Vr100nA @ 70V
Reverse Recovery Time (trr)4ns
SpeedSmall Signal =< 200mA (Io), Any Speed
Mounting TypeSurface Mount
Package / CaseSC-75-3, SOT-416, EMT3
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DAN222TL
DAN222TL
DAN222TLTR ND
DAN222TLTRND
DAN222TLTR
