Purchase DCR011205U, In-stock DCR011205U From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

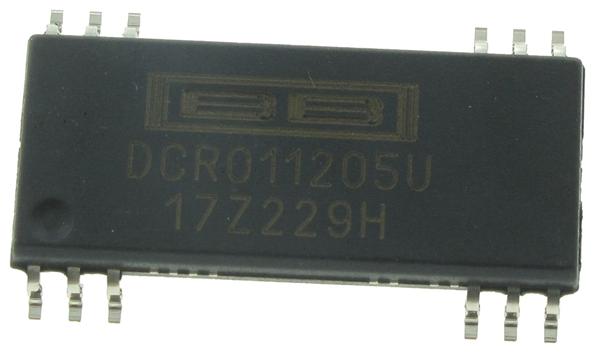

DCR011205U

DCR Series Datasheet download

Five Points

Part Number: DCR011205U

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC DC/DC CONV REG 1W 28-SOIC

Price Break

1
25
100
250
500
1000
5000

Unit Price

12.41000
11.17520
9.90850
9.49876
9.31250
9.20075
8.94000

Extended Price

12.41
279.38
990.85
2374.69
4656.25
9200.75
44700.00

(All prices are in USD) Prices for reference only
Urgent Purchase

DCR011205U General Description

IC DC/DC CONV REG 1W 28-SOIC

DCR011205U Parameters

Technical/Catalog InformationDCR011205U
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeIsolated
Number of Outputs1
Voltage - Input10.8 ~ 13.2 V
Voltage - Output5V
Current - Output200mA
Power - Output1W
Package / Case28-SOIC (7.5mm Width), 12 Leads
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching400kHz
Drawing Number296; 4202104; DVB; 12
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DCR011205U
DCR011205U
296 9453 5 ND
29694535ND
296-9453-5

DCR011205U datasheet

DCR011205U
PDF/DataSheet Download

  • Datasheet: DCR011205U
  • File Size: 155479 KB
  • Manufacturer: BURR-BROWN [Burr-Brown Corporation]
  • Click here to Download
