Purchase DCR012405U, In-stock DCR012405U From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

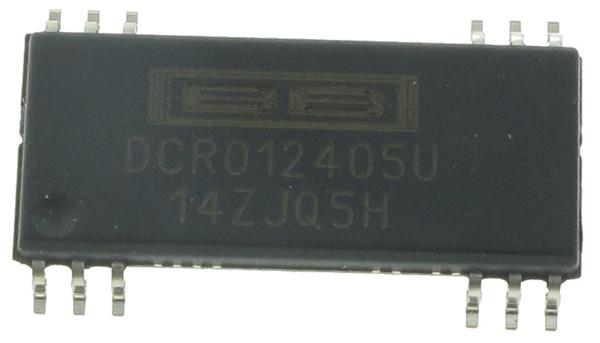

DCR012405U

DCR Series Datasheet download

Five Points

Part Number: DCR012405U

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC DC/DC CONV REG 1W 28-SOIC

Price Break

1
25
100
250
500
1000
5000

Unit Price

10.50000
9.45000
8.37900
8.03252
7.87500
7.78050
7.56000

Extended Price

10.50
236.25
837.90
2008.13
3937.50
7780.50
37800.00

(All prices are in USD) Prices for reference only
Urgent Purchase

DCR012405U General Description

IC DC/DC CONV REG 1W 28-SOIC

DCR012405U Parameters

Technical/Catalog InformationDCR012405U
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeIsolated
Number of Outputs1
Voltage - Input21.6 ~ 26.4 V
Voltage - Output5V
Current - Output200mA
Power - Output1W
Package / Case28-SOIC (7.5mm Width), 12 Leads
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching400kHz
Drawing Number296; 4202104; DVB; 12
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DCR012405U
DCR012405U
296 9457 5 ND
29694575ND
296-9457-5

DCR012405U datasheet

DCR012405U
PDF/DataSheet Download

  • Datasheet: DCR012405U
  • File Size: 155479 KB
  • Manufacturer: BURR-BROWN [Burr-Brown Corporation]
  • Click here to Download
