Part Number: DCR02









Description: The DCR02 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In...


Urgent Purchase

DCR02 General Description


The DCR02 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 2W nominal, galvanically-isolated output power capability, this range of converters offers very low output noise and high accuracy.

The DCR02 family is implemented in standard molded IC packaging, providing standard JEDEC outlines suitable for high-volume assembly.

The DCR is manufactured using the same technology as standard IC packages, thereby achieving very high reliability.

DCR02 Maximum Ratings

  DCR02 SERIES UNIT
Input Voltage DCR0212 15 V
DCR0224 29
Storage Temperature −60 to +125 °C
Lead Temperature (soldering, 10s +270 °C
(1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods
may degrade device reliability. These are stress ratings only, and
functional operation of the device at these or any other conditions
beyond those specified is not implied.

DCR02 Features

· UL1950 Recognized
· DIP-18 and SO-10 Packages
· 55W/in3 (3.3W/cm3) Power Density
· Device-to-Device Synchronization
· Thermal Protection
· 1000Vrms Isolation
· 400kHz Switching
· 125 FITS at 55°C
· Short-Circuit Protection
· 12V, 24V Inputs
· 5V Outputs

DCR02 Typical Application

·  Point-of-Use Power Conversion
·  Digital Interface Power
·  Ground Loop Elimination
·  Power-Supply Noise Reduction

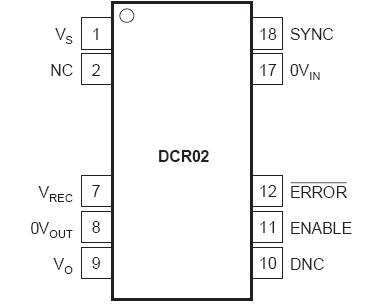

DCR02 Connection Diagram

DCR02 Connection Diagram
