DCW12

Features: ·2:1 wide input range·1500VDC I/O isolation·Built-in remote ON/OFF control·Built-in EMI filter·Protections: Short circuit / Overload·Cooling by free air convection·Five-sided shield metal case·100% full load burn-in test·Low cost / High reliability·2 years warrantySpecifications O...

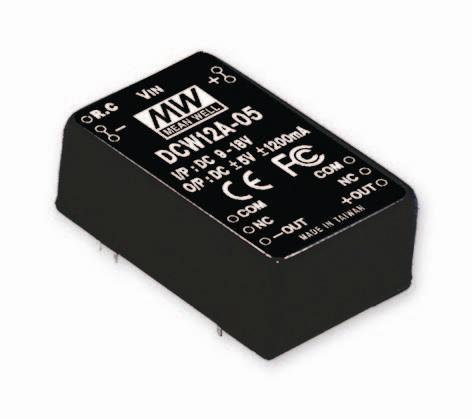

product image

DCW12 Picture
See larger image
SeekIC No. : 004324520 Detail

DCW12: Features: ·2:1 wide input range·1500VDC I/O isolation·Built-in remote ON/OFF control·Built-in EMI filter·Protections: Short circuit / Overload·Cooling by free air convection·Five-sided shield metal ...

DCW12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DCW12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·2:1 wide input range
·1500VDC I/O isolation
·Built-in remote ON/OFF control
·Built-in EMI filter
·Protections: Short circuit / Overload
·Cooling by free air convection
·Five-sided shield metal case
·100% full load burn-in test
·Low cost / High reliability
·2 years warranty


Specifications

ORDER NO.
DCW12A-05
DCW12B-05
DCW12C-05
OUTPUT
DC VOLTAGE
±5V
CURRENT RANGE ±240 ~ ±1200mA
RATED POWER 12W
RIPPLE & NOISE (max.) 50mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
VOLTAGE ACCURACY ±2.0%
SWITCHING FREQUENCY 400KHz min.
INPUT
 VOLTAGE RANGE A: 9 ~ 18VDC B: 18 ~ 36VDC C: 36 ~ 72VDC
EFFICIENCY (Typ.) 80% 80% 81%
DC CURRENT Full load A: 1245mA B: 625mA C: 320mA
No load A: 70mA B: 35mA C: 25mA
FILTER Pi network
PROTECTION Fuse recommended
PROTECTION
 OVERLOAD 110 ~ 180% rated output load
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with over current protection
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
 WORKING TEMP. -25 ~ +71(refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105 , 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
