Product Details

Description



Features:

High breakdown voltage(VRRM=1600V).
High reliability.
One-point fixing type plastic molded package
facilitating mounting and heat dissipation.
Fast forward/reverse recovery time.

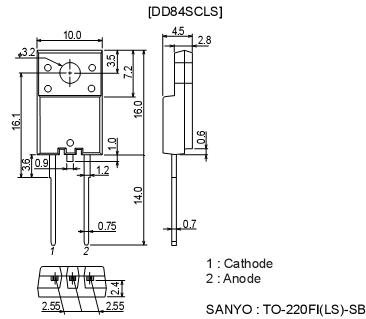

Pinout

Connection Diagram




Specifications

Absolute maximum ratings
VRRM [V] 1600
IO [A] 8
IOP [A] 32
Electrical characteristics
VR min [V] 1600
VF max [V] 1.8
IR max [µA] 200
trr max [µs] 1.5
IF [mA] 100
IR [mA] 100
tfr typ [µs] 0.1
tfr max [µs] 0.2
Cj typ [pF] 90


Parameter

Symbol

Conditions

Ratings

Unit

Repetitive Peak Reverse Voltage

VRRM

1500

V

Non-repetitive Peak Reverse Voltage

VRSM

1500

V

Average Output Current

IO

8

A

Peak Output Current

IOP

PW100s, duty50%

32

A

Surge Forward Current

IFSM

Sine wave, 10ms

80

A

Junction Temperature

Tj

150

°C

Storage Temperature

Tstg

--55 to +150

°C
