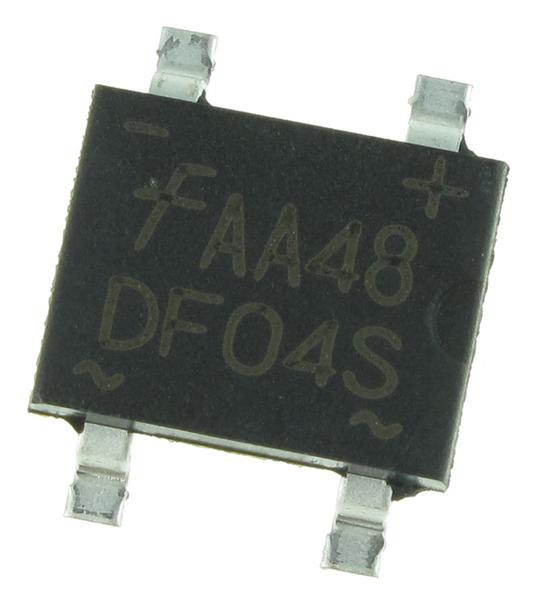

DF04S

Product : Single Phase Bridge
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Packaging : Reel
Peak Reverse Voltage : 400 V
Maximum RMS Reverse Voltage : 280 V
Forward Continuous Current : 1.5 A
Max Surge Current : 50 A
Forward Voltage Drop : 1.1 V
Power Dissipation : 3.1 W
Height : 3.3 mm
Maximum Reverse Leakage Current : 50 uA
Length : 8.5 mm
Width : 6.5 mm
Package / Case : SDIP-4


Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
DF04S	Full Production	RoHS Compliant	$0.153	SDIP	4	TAPE REEL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Part Number	DF04S
Total Capacitance CT (pF)	25
Max Average Rectified Current IO (A)	1
Peak Repetitive Reverse Voltage VRRM (V)	400
Peak Forward Surge Current IFSM (A)	50
Forward Voltage Drop VF (V)	1.1
Max Reverse Current IR (µA)	10

Description

DF005S thru DF10S datasheet




Parameters:

Technical/Catalog Information	DF04S
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Single Phase
Package / Case	4-SDIP
Packaging	Cut Tape (CT)
Reverse Recovery Time (trr)	-
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)	1.5A
Voltage - Peak Reverse (Max)	400V
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DF04S DF04S DF04SCT ND DF04SCTND DF04SCT
