SeekIC No. : 00133051 Detail

DF06S-T: Bridge Rectifiers 1A 600Vrrm 50Ifsm

DF06S-T Data Sheet

US $ .16~.31 / Piece | Get Latest Price

Part Number:: DF06S-T
Mfg:: Diodes Inc.
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~250

Unit Price
$.31
$.25
$.19
$.16

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

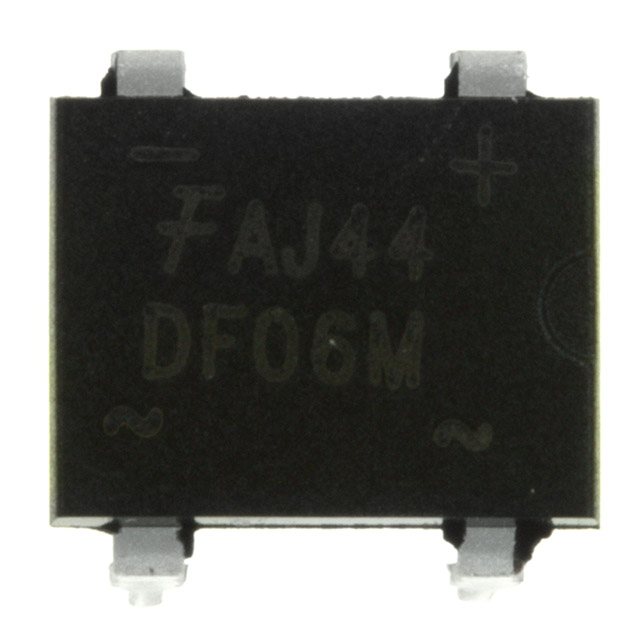

DF06M evaluate
US $.14 - .22 / Piece

Bridge Rectifiers 1.5A Bridge
DF06M/45 evaluate
Bridge Rectifiers 1.0 Amp 600 Volt
DF06M_Q evaluate
Bridge Rectifiers 1.5A Bridge

Product Details

Quick Details

Product :	Single Phase Bridge	Peak Reverse Voltage :	600 V
Maximum RMS Reverse Voltage :	420 V	Max Surge Current :	50 A
Forward Voltage Drop :	1.1 V	Maximum Reverse Leakage Current :	10 uA
Maximum Operating Temperature :	+ 150 C	Length :	8.51 mm
Width :	6.5 mm	Height :	3.4 mm
Mounting Style :	SMD/SMT	Package / Case :	DFS
Packaging :	Reel

Description

Forward Continuous Current :
Power Dissipation :
Product : Single Phase Bridge
Peak Reverse Voltage : 600 V
Maximum Operating Temperature : + 150 C
Maximum Reverse Leakage Current : 10 uA
Packaging : Reel
Maximum RMS Reverse Voltage : 420 V
Max Surge Current : 50 A
Forward Voltage Drop : 1.1 V
Length : 8.51 mm
Width : 6.5 mm
Mounting Style : SMD/SMT
Package / Case : DFS
Height : 3.4 mm

Parameters:

Technical/Catalog Information	DF06S-T
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Diode Type	Single Phase
Package / Case	DF-S
Packaging	Tape & Reel (TR)
Reverse Recovery Time (trr)	-
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)	1A
Voltage - Peak Reverse (Max)	600V
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DF06S T DF06ST
