DF08S

Bridge Rectifiers 1.5A Bridge

product image

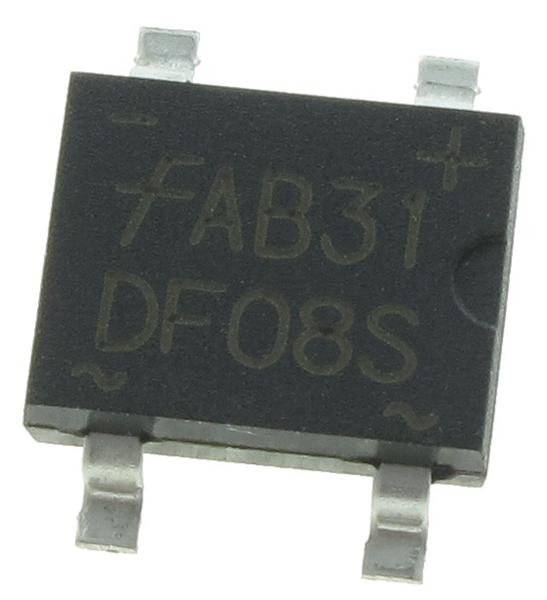

DF08S Picture
SeekIC No. : 00132625 Detail

DF08S: Bridge Rectifiers 1.5A Bridge

floor Price/Ceiling Price

US $ .15~.24 / Piece | Get Latest Price
Part Number:
DF08S
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.24
  • $.2
  • $.17
  • $.15
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Single Phase Bridge Peak Reverse Voltage : 800 V
Maximum RMS Reverse Voltage : 560 V Forward Continuous Current : 1.5 A
Max Surge Current : 50 A Forward Voltage Drop : 1.1 V
Maximum Reverse Leakage Current : 50 uA Power Dissipation : 3.1 W
Maximum Operating Temperature : + 150 C Length : 8.5 mm
Width : 6.5 mm Height : 3.3 mm
Mounting Style : Through Hole Package / Case : SDIP-4
Packaging : Reel

Description

Product : Single Phase Bridge
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Packaging : Reel
Peak Reverse Voltage : 800 V
Maximum RMS Reverse Voltage : 560 V
Forward Continuous Current : 1.5 A
Max Surge Current : 50 A
Forward Voltage Drop : 1.1 V
Power Dissipation : 3.1 W
Height : 3.3 mm
Maximum Reverse Leakage Current : 50 uA
Length : 8.5 mm
Width : 6.5 mm
Package / Case : SDIP-4


Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing
DF08S Full Production RoHS Compliant $0.165 SDIP 4 TAPE REEL TBD
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples


Part Number DF08S
Total Capacitance CT (pF) 25
Max Average Rectified Current IO (A) 1
Peak Repetitive Reverse Voltage VRRM (V) 800
Peak Forward Surge Current IFSM (A) 50
Forward Voltage Drop VF (V) 1.1
Max Reverse Current IR (µA) 10





Parameters:

Technical/Catalog InformationDF08S
VendorFairchild Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Diode Type Single Phase
Package / Case4-SDIP
PackagingCut Tape (CT)
Reverse Recovery Time (trr)-
SpeedStandard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)1.5A
Voltage - Peak Reverse (Max)800V
Mounting TypeSurface Mount
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DF08S
DF08S
DF08SCT ND
DF08SCTND
DF08SCT
