General Description
DF1704 General Description
The DF1704 is a high performance, stereo, 8X oversampling digital interpolation filter designed for high-end consumer and professional audio applications.
The DF1704 supports 24-bit, 96kHz operation and features user-programmable functions, including selectable filter response, de-emphasis, attenuation, and input/output data formats.
The DF1704 is the ideal companion for Burr-Brown's PCM1704 24-bit audio digital-to-analog converter.
This combination allows for construction of very high performance audio systems and components.
DF1704 Maximum Ratings
Supply Voltage (VDD , VCC1, VCC2R, VCC2L) ..................................... +6.5V
Supply Voltage Differences ................................................................ ±0.1
GND Voltage Differences .................................................................. ±0.1V
Digital Input Voltage ................................................0.3V to (VDD + 0.3V)
Input Current (any pins except power supplies) ............................ ±10mA
Power Dissipation .......................................................................... 300mW
Operating Temperature Range ......................................... 25 to +85
Storage Temperature ..................................................... 55 to +125
Lead Temperature (soldering, 5s) ................................................. +260
Package Temperature (reflow, 10s) .............................................. +235
Supply Voltage Differences ................................................................ ±0.1
GND Voltage Differences .................................................................. ±0.1V
Digital Input Voltage ................................................0.3V to (VDD + 0.3V)
Input Current (any pins except power supplies) ............................ ±10mA
Power Dissipation .......................................................................... 300mW
Operating Temperature Range ......................................... 25 to +85
Storage Temperature ..................................................... 55 to +125
Lead Temperature (soldering, 5s) ................................................. +260
Package Temperature (reflow, 10s) .............................................. +235
DF1704 Features
` COMPANION DIGITAL FILTER FOR THE PCM1704 24-BIT AUDIO DAC
` HIGH PERFORMANCE FILTER: Stopband Attenuation: 115dB Passband Ripple: ±0.00005dB
` AUDIO INTERFACE: Input Data Formats: Standard, Left- Justified, and I2S Input Word Length: 16, 20, or 24 Bits Output Word Length: 16, 18, 20, or 24 Bits Sampling Frequency: 32kHz to 96kHz
` SYSTEM CLOCK: 256fS, 384fS, 512fS, 768fS
` ON-CHIP CRYSTAL OSCILLATOR
` PROGRAMMABLE FUNCTIONS: Hardware or Software Control Modes Sharp or Slow Roll-Off Filter Response Soft Mute Digital De-Emphasis Independent Left/Right Digital Attenuation
` +5V SINGLE-SUPPLY OPERATION
`SMALL 28-LEAD SSOP PACKAGE
` HIGH PERFORMANCE FILTER: Stopband Attenuation: 115dB Passband Ripple: ±0.00005dB
` AUDIO INTERFACE: Input Data Formats: Standard, Left- Justified, and I2S Input Word Length: 16, 20, or 24 Bits Output Word Length: 16, 18, 20, or 24 Bits Sampling Frequency: 32kHz to 96kHz
` SYSTEM CLOCK: 256fS, 384fS, 512fS, 768fS
` ON-CHIP CRYSTAL OSCILLATOR
` PROGRAMMABLE FUNCTIONS: Hardware or Software Control Modes Sharp or Slow Roll-Off Filter Response Soft Mute Digital De-Emphasis Independent Left/Right Digital Attenuation
` +5V SINGLE-SUPPLY OPERATION
`SMALL 28-LEAD SSOP PACKAGE

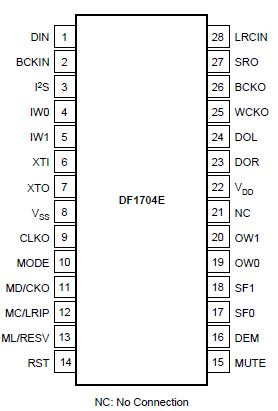

DF1704 Connection Diagram
