Part Number: DF1706
Description: The DF1706 is a high performance, stereo, 8X oversampling digital interpolation filter designed for high-end consumer a...
- Table of contents:
DF1706
-
Suppliers
DataSheet
General Description
DF1706 General Description
The DF1706 is a high performance, stereo, 8X oversampling digital interpolation filter designed for high-end consumer and professional audio applica-tions. The DF1706 supports 24-bit, 192kHz operation and features user-programmable functions, including selectable filter response, de-emphasis, attenuation,and input/output data formats.
The DF1706 is the ideal companion for Texas Instruments's PCM1704 24-bit audio Digital-to-Ana-log (D/A) converter.This combination allows for the construction of very high-performance audio systems and components.
DF1706 Maximum Ratings
Supply Voltage..................................................................................+4.0V
Digital Input Voltage..............................................................0.2V to 4.5V
Input Current (any pins except supplies) ........................................±10mA
Operating Temperature Range......................................... 25°C to +85°C
Ambient Storage Temperature ....................................... 40°C to +125°C
Junction Temperature................................................................... +150°C
Lead Temperature (soldering, 5s)................................................. +260°C
Package Temperature (IR reflow, Peak, 10s)................................ +235°C
Digital Input Voltage..............................................................0.2V to 4.5V
Input Current (any pins except supplies) ........................................±10mA
Operating Temperature Range......................................... 25°C to +85°C
Ambient Storage Temperature ....................................... 40°C to +125°C
Junction Temperature................................................................... +150°C
Lead Temperature (soldering, 5s)................................................. +260°C
Package Temperature (IR reflow, Peak, 10s)................................ +235°C
DF1706 Features
COMPANION DIGITAL FILTER FOR THE PCM1704 24-BIT AUDIO DAC
HIGH PERFORMANCE FILTER:
Stopband Attenuation: 115dB
Passband Ripple: ±0.00005dB
AUDIO INTERFACE:
Input Data Formats: Standard, Left-2 Justified, and I S
Input Word Length: 16, 20, or 24 Bits
Output Word Length: 16, 18, 20, or 24 Bits
Sampling Frequency: 32kHz to 192kHz
SYSTEM CLOCK: 128f(S) , 192f(S) , 256f(S) ,384f(S) , 512f(S) , 768f(S)
ON-CHIP CRYSTAL OSCILLATOR PROGRAMMABLE FUNCTIONS:
Hardware or Software Control Modes Sharp or Slow Roll-Off Filter Response Soft Mute
Digital De-Emphasis
Independent Left/Right Digital Attenuation
+3.3V SINGLE-SUPPLY OPERATION
SMALL SSOP-28 PACKAGE

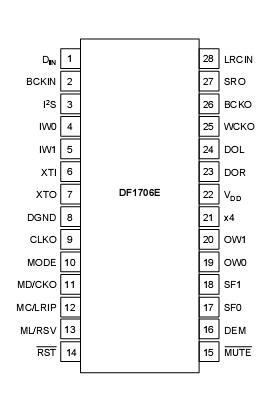

DF1706 Connection Diagram
DF1706
