Product Details

Description



Features:

Analog Signal Range: ±15 V
Fast Switching-tON: 150 ns
Low On-Resistance-rDS(on): 30
Single Supply Operation
Latch-up Proof
CMOS Compatible




Application

Low Level Switching Circuits
Programmable Gain Amplifiers
Portable and Battery Powered Systems




Pinout

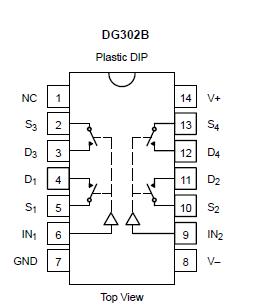

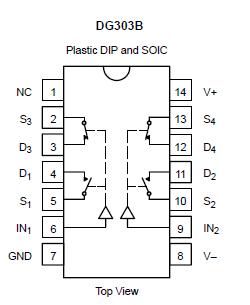

Connection Diagram Connection Diagram Connection Diagram Connection Diagram




Specifications

Voltages Referenced to V
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 V
GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
Digital InputsNO TAG, VS, VD . . . . . . . . . . . . . . . . . . . (V) 2 V to (V+) +2V or
30 mA, whichever occurs first
Current, Any Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Continuous Current, S or D
(Pulsed at 1 ms, 10% duty cycle max) . .. . . . . . . . . . . . . . . . . . . . . . . 100 mA
Storage Temperature . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . 65 to 150
Power DissipationNO TAG
14-Pin Plastic DIPNO TAG . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470 mW
SOIC-14d . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600 mW
Notes:
a. Signals on SX, DX, or INX exceeding V+ or V will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 6.5 mW/ above 25
d. Derate 7.6 mW/ above 75




Description

CMOS Analog Switches

The DG300B-DG303B family of monolithic CMOS switches feature three switch configuration options (SPST, SPDT, and DPST) for precision applications in communications, instrumentation and process control, where low leakage switching combined with low power consumption are required.

Designed on the Vishay Siliconix PLUS-40 CMOS process, these switches are latch-up proof, and the DG300B-DG303B family of monolithic CMOS switches are designed to block up to 30 V peak-to-peak when off. An epitaxial layer prevents latchup.
