DG884

Features:

Routes Any Input to Any Output
Wide Bandwidth: 300 MHz
Low Crosstalk: 85 dB @ 5 MHz
Double Buffered TTL-Compatible Latches with Readback
Low rDS(on): 45
Optional Negative Supply




Application

Wideband Signal Routing and Multiplexing
High-End Video Systems
NTSC, PAL, SECAM Switchers
Digital Video Routing
ATE Systems

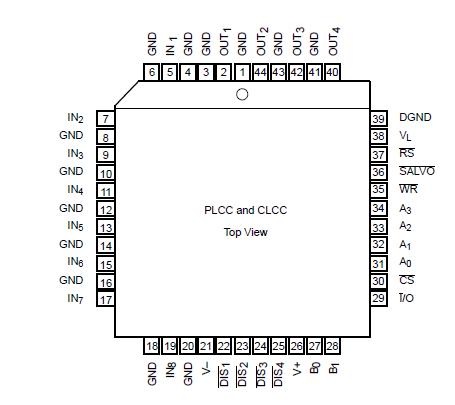

Pinout






Specifications

V₊ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 0.3 V to +21 V
V₊ to V . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 0.3 V to +21 V
V to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 V to +0.3 V
Digital Inputs .. . . . . . . ... . . . ... . . . . . . . (V) 0.3 V to (V₊) + 0.3 V
or 20 mA, whichever occurs first
VS, VD . . . . . . . . . . . . . . . . . . . . . . . .. . . (V) 0.3 V to (V) + 14 V
or 20 mA, whichever occurs first
Current (any terminal) Continuous . . . . . . . . . . . . . . . . . . . . . 20 mA
Current(S or D) Pulsed l ms 10% Duty . . .. . . . . . . . . . . . . . . . 40 mA
Storage Temperature (AP Suffix) . . . . . . . . . .. . . . . . . 65 to 150
(DJ, DN, DY Suffixes) . . . . . . .. . 65 to 125
Operating Temperature (A Suffix) . . . . . . .. . . . . . . . . . . 55 to 125
(D Suffix) . . . . . . . . . . . . . . . . . . 40 to 85
Power Dissipation (Package)^a
44-Pin Quad J Lead PLCC^b .. . . . . . . . . . . . . . . . . . . . . . . . . . 450 mW
44-Pin Quad J Lead Hermetic CLCC^c . . . . .. . . . . . . . . . . . . 1200 mW
Notes:
a. All leads welded or soldered to PC Board.
b. Derate 6 mW/above 75
c. Derate16 mW/above 75





Description

The DG884 contains a matrix of 32 T-switches configured in an 8 4 crosspoint array. Any of the IN/OUT pins may be used as an input or output. Any of the IN pins may be switched to any or simultaneously to all OUT pins.

The DG884 is built on a proprietary D/CMOS process that combines low capacitance switching DMOS FETs with low power CMOS control logic and drivers. The ground lines between adjacent signal input pins help to reduce crosstalk.The low on-resistance and low on-capacitance of the DG884 make it ideal for video and wideband signal routing.


8x4 Wideband Video Crosspoint Array
