DG9425

ApplicationAutomatic Test EquipmentData Acquisition SystemsCommunication SystemsADC SystemsxDSL and PBX/PABXAudio Signal RoutingPinoutSpecificationsV+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 TO 13 VGND to V- . . . . . . . . . . . . . . . . . . ....

product image

DG9425 Picture
See larger image
SeekIC No. : 004326349 Detail

DG9425: ApplicationAutomatic Test EquipmentData Acquisition SystemsCommunication SystemsADC SystemsxDSL and PBX/PABXAudio Signal RoutingPinoutSpecificationsV+ to V- . . . . . . . . . . . . . . . . . . . . ....

DG9425 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG9425
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/8/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

Automatic Test Equipment
Data Acquisition Systems
Communication Systems
ADC Systems
xDSL and PBX/PABX
Audio Signal Routing




Pinout

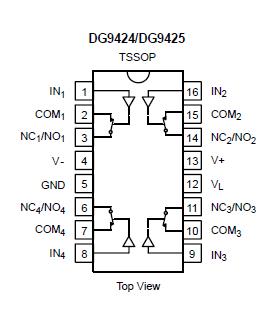

Connection Diagram Connection Diagram




Specifications

V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 TO 13 V
GND to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
VL . . . . . . . . . . . . . . . . . . . . . . .. . .. . . . . . . . . (GND -0.3 V) to (V+) +0.3 V
IN, COM, NC, NOa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to (V+ +0.3 V)
Continuous Current (NO, NC, COM Pins) . . . . . . . . . . . . . . . . . . . . . 100 mA
Peak Current, S or D (Pulsed 1 ms, 10% Duty Cycle) .. . . . . . . . . . . 200 mA
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . -65 to 150
Power Dissipation (Package)b
16-Pin TSSOPc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450 mW
Notes:
a. Signals on NC, NO, COM or IN exceeding V+ or V- will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 7 mW/ above 25




Description

The DG9424/DG9425/9426 are low voltage precision monolithic quad single-pole-single-throw analog switches.

Using BiCMOS wafer fabrication technology allows the DG9424/DG9425/9426 to operate on single and dual supplies.Single supply voltage ranges from 3 to 12 V while dual supply operation is recommended with±3 to±6 V.
