Part Number: DIR1701
Description: The DIR1701 is a digital audio interface receiver(DIR) which receives and decodes audio data upto 96 k...
- Table of contents:
DIR1701
-
Suppliers
DataSheet
General Description
DIR1701 General Description
The DIR1701 is a digital audio interface receiver(DIR) which receives and decodes audio data upto 96 kHz according to the AES/EBU, IEC958,S/PDIF, and EIAJCP340/1201 consumer andprofessional format interface standards. The DIR1701 demultiplexes the channel status bit anduser bit directly to serial output pins, and hasdedicated output pins for the most importantchannel status bits.
The significant advantages of the DIR1701 are96 kHz sampling rate capability and Low-jitterclock recovery by the Sampling Period AdaptiveControlled Tracking (SpActTM) system. Input signalis reclocked with the patented Sampling periodAdaptive controlled tracking system for maximumquality. These two features are required for recentconsumer and professional audio instruments, inwhich the DIR has an interface to any kind ofdelta-sigma type ADC/DAC with 96 kHz samplingrate.
DIR1701 Maximum Ratings
Supply voltage, VCC, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0 V
Supply voltage differences, VCC , VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±0.1 V
Ground voltage differences, AGND, DGND . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . ±0.1 V
Digital input voltage: Digital input pins except XTI . . . . . .. . . . . . . . . . 0.3 V to (6.5 V + 0.3 V)
XTI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VDD + 0.3 V)
Input current (Any pins except supplies) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Ambient temperature under bias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to 125
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to 150
Junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . . . . 150
Lead temperature (soldering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260, 5 sec
Package temperature (IR reflow, peak) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235, 10 sec
Supply voltage differences, VCC , VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±0.1 V
Ground voltage differences, AGND, DGND . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . ±0.1 V
Digital input voltage: Digital input pins except XTI . . . . . .. . . . . . . . . . 0.3 V to (6.5 V + 0.3 V)
XTI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VDD + 0.3 V)
Input current (Any pins except supplies) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Ambient temperature under bias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to 125
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to 150
Junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . . . . 150
Lead temperature (soldering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260, 5 sec
Package temperature (IR reflow, peak) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235, 10 sec
DIR1701 Features
Standard Digital Audio Interface Receiver(EIAJ1201)
Sampling Rate: 32/44.1/48/88.2/96 kHz Recover 128 / 256 / 384 / 512 fs System Clock
Very Low Jitter System Clock Output (80psTypically)
On-Chip Master Clock Oscillator, Only anExternal 12.000 MHz or 16.000 MHz Crystal IsRequired
Selectable Output PCM Audio Data Format
Output User Bit Data, Flag Signals, andChannel Status Data With Block Start
Signal Single + 3.3-V Power Supply
Package: 28 SSOP
DIR1701 Typical Application
AV Receiver
MD Player
DAC Unit
MD Player
DAC Unit

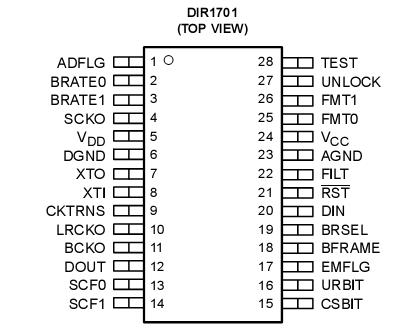

DIR1701 Connection Diagram
DIR1701
