DLG4137

LED Displays & Accessories 5x7 Green 0.43", 1-CHARACTER

product image

DLG4137 Picture
SeekIC No. : 005575 Detail

DLG4137: LED Displays & Accessories 5x7 Green 0.43", 1-CHARACTER

floor Price/Ceiling Price

US $ 6.37~8.5 / Piece | Get Latest Price
Part Number:
DLG4137
Mfg:
OSRAM Opto Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • Unit Price
  • $8.5
  • $6.79
  • $6.58
  • $6.37
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Display Type : 5 x 7 Dot Matrix Number of Digits : 1
Character Size : 0.43 in Illumination Color : Green
Wavelength : 565 nm Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C

Description

Common Pin :
Operating Voltage :
Operating Current :
Packaging :
Number of Digits : 1
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Illumination Color : Green
Wavelength : 565 nm
Display Type : 5 x 7 Dot Matrix
Character Size : 0.43 in


Features:

• 5x7 Dot Matrix Characters
   DLO4135/DLG4137: .43" High
   DLO7135/DLG7137: .68" High
• Wide Viewing Angle±75
• 96 Character ASCII Set
   Upper Case and Lower Case Characters
• Fully Encapsulated, Rugged Solid Plastic Package
• Built-in Memory
• Built-in Character Generator
• Built-in Multiplex and LED Drive Circuitry
• Built-in Lamp Test
• Intensity Control (4 levels)
• Microprocessor Bus Compatible
• Intensity Coded for Display Uniformity
• Single 5-Volt Power Supply
• X/Y Stackable
• Available in High Efficiency Red and Green




Pinout

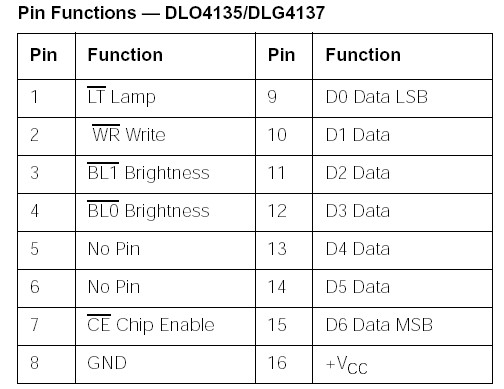

  Connection Diagram  Connection Diagram


Specifications

VCCRange (max.) . . . . . . . . . . . . . . . . . . . . . . 0.5 to +7.0 Vdc
Voltage, Any Pin, Respect to GND . . . . . . 0.5 to VCC+0.5 Vdc
Operating Temperature . . . . . . . . . . . . . . . . . . 40 to +85
Storage Temperature . . . . . . . . . . . . . . . . .. . 40 to +100
Maximum Solder Temperature, .063"
below Seating Plane, t<5 sec. . . . . . . . . . . . . . . . . .. . . . 260
Relative Humidity at 85(non condensing) . . . . . . . . . . . . 85%




Description

The DLX413X/DLX713X are single digit 5x7 dot matrixIntelligent Display devices. The DLX413X character is0.43" high. The DLX713X character is 0.68" high. The builtinCMOS integrated circuit contains memory, ASCII charactergenerator, LED multiplexing and drive circuitry;thereby eliminating the need for additional circuitry. Theywill display the 96 ASCII characters.

These devices of DLX413X/DLX713X are TTL and microprocessor compatibleand offer the possibility of cascading the displays, allowingfor multi-character messages. These displays weredesigned for viewing distances of up to 20 feet(DLX413X)or 30 feet (DLX713X). They require a single 5-volt powersupply and parallel ASCII input.

All products of DLX413X/DLX713X are 100% tested, then subjected to out-goingAQLs of .25% for brightness matching, visual alignmentand dimensions, .065% for electrical and functional.Maximum Ratings




Parameters:

Technical/Catalog InformationDLG4137
VendorOSRAM Opto Semiconductors Inc
CategoryOptoelectronics
ColorGreen
Size / Dimension1.00" L x 0.50" W x 0.31" H (25.40mm x 12.70mm x 7.87mm)
Millicandela Rating-
Configuration-
Voltage - Forward (Vf) Typ-
Internal Connection-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DLG4137
DLG4137
475 1354 ND
4751354ND
475-1354
