DM115

Features: *Maximum Output Voltage: 17V *Maximum Clock Frequency: 25MHz (Cascade Operation) *Power Supply Voltage: 3.3V to 5.0V *CMOS Compatible Input *Package: PDIP16, SOP16, SSOP16 *Package and Pin Layout: Pin layout and functionality are similar to those of the ST2221A. (Each characteristic v...

product image

DM115 Picture
See larger image
SeekIC No. : 004326875 Detail

DM115: Features: *Maximum Output Voltage: 17V *Maximum Clock Frequency: 25MHz (Cascade Operation) *Power Supply Voltage: 3.3V to 5.0V *CMOS Compatible Input *Package: PDIP16, SOP16, SSOP16 *Package and Pi...

DM115 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DM115
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Maximum Output Voltage:     17V
*Maximum Clock Frequency:   25MHz (Cascade Operation)
*Power Supply Voltage:          3.3V to 5.0V
*CMOS Compatible Input
*Package:                               PDIP16, SOP16, SSOP16
*Package and Pin Layout:       Pin layout and functionality are similar to those of the ST2221A.
                                               (Each characteristic value is different.)
*Constant Current Matching: (Ta = 25°C,VDD = 5.0V)
                                               Chip-to-Chip: ± 10.0%
                                               DM114:  Bit-to-Bit: ± 4.0% @ IOUT = 30 ~ 90mA
                                                                             ± 6.0% @ IOUT = 20 ~ 30mA
                                               DM115:  Bit-to-Bit: ± 4.0% @ IOUT = 20 ~ 60mA
                                                                             ± 6.0% @ IOUT = 5 ~ 20mA



Pinout

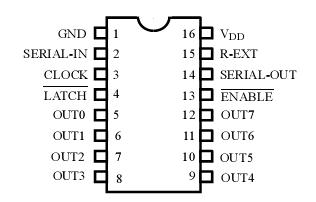

Connection Diagram


Specifications

CHARACTERISTIC SYMBOL RATING UNIT
Supply Voltage VDD 0 ~ 7.0 V
Input Voltage VIN -0.4 ~ VDD+0.4 V
Output Current IOUT 90 (DM114) mA
60 (DM115)
Output Voltage VOUT -0.3 ~ 17 V
Clock Frequency fCLK 25 MHz
GND Terminal Current IGND 750 mA
500
Power Dissipation PD 1.64 ( PDIP-16 : Ta=25) W
1.08 ( SOP-16 : Ta=25)
0.8 ( SSOP-16 : Ta=25)
Thermal Resistance Rth(j-a) 76 ( PDIP-16 ) /W
115 ( SOP-16 )
155 ( SSOP-16 )
Storage Temperature Tstg -55 ~ 150



Description

   The DM114,DM115 is the constant current driver specifically designed for LED display applications. The value of constant current can be varied using an external resistor. The DM114,DM115 include an 8-bit shift register, latches, and constant current drivers on a single Silicon CMOS chip.
