Part Number: DM413



MFG: SITI

Package Cooled: SSOP16

D/C: 04+

Description: DM413 is a PWM enabled LED driver specifically designed for LED lighting or display applications. It i...


Urgent Purchase

DM413 General Description


DM413 is a PWM enabled LED driver specifically designed for LED lighting or display applications. It incorporates shift registers, data latches, 3-channel constant current circuitry with current value set by 3 external resistors, and built-in oscillator for PWM functioning. Data and clock buffer outputs are designed for cascading another chip. Additionally the Output Polarity Reverse function is designed to adapt to more high power LED applications.

DM413 Maximum Ratings

CHARACTERISTIC SYMBOL RATING UNIT
Supply Voltage VDD -0.3 ~ 7.0 V
Input Voltage VIN -0.3 ~ VDD+0.3 V
Output Current IOUT 110 mA
Output Voltage VOUT -0.3 ~ 17 V
Input Clock Frequency FCKI 25 MHz
GND Terminal Current IGND 330 mA
Power Dissipation PD 0.82 ( SSOP16 : Ta=25°C)
0.86 ( SOP16 : Ta=25°C)		 W
Thermal Resistance Rth(j-a) 115.9 ( SSOP16 )
110.9 ( SOP16 )		 °C/W
Operating Temperature Top -40 ~ 85 °C
Storage Temperature Tstg -55 ~ 150 °C

DM413 Features

·Maximum constant current outputs: 100mA determined by three external resistors
·Maximum sinking output voltage: 17V
·Maximum serial-in clock frequency: 20 MHz
·Built-in buffers for cascading clock and data to next driver
·PWM free-running capability (refresh rate (~ 400 Hz) with internal oscillator (~ 6.5 MHz))
·Selectable modes for PWM control:
·8-bits luminance data with PWM current outputs (8 bits mode)
·8-bits luminance data and 6-bits global brightness data (14 bits mode)
·8-bits luminance data and 5-bits individual color correction data (13 bits mode)
·Output polarity reverse function
·TTL/CMOS compatible input
·Power supply voltage: 3.3V ~ 5.5V

DM413 Typical Application

·LED Decorative Lighting
·Indoor/Outdoor LED Video or Message Display
·PWM Signal Generator

DM413 Connection Diagram

DM413 Connection Diagram

DM413 datasheet

DM413
PDF/DataSheet Download

Find DM413 Suppliers

  • ·DM4011
  • SANYO [Sanyo Semicon Device]
  • 40 characters x 1 line Liquid Crystal Dot Matrix Display Module　
  • 159527 KB
  • DM4011 Datasheet Download
  • ·DM4021
  • SANYO [Sanyo Semicon Device]
  • 40 characters x 2 line Liquid Crystal Dot Matrix Display Module　
  • 160076 KB
  • DM4021 Datasheet Download
  • ·DM45026
  • ETC [ETC]
  • 3 STATES ENCODER
  • 44093 KB
  • DM45026 Datasheet Download
  • ·DM4-8819F4-CA02
  • MARKTECH [Marktech Corporate]
  • Cotco 8x8 RGB Dot Matrix Column Anode
  • 227234 KB
  • DM4-8819F4-CA02 Datasheet Download
  • ·DM4-8819F4-CC02
  • MARKTECH [Marktech Corporate]
  • Cotco 8x8 RGB Dot Matrix Column Cathode
  • 229561 KB
  • DM4-8819F4-CC02 Datasheet Download

Related Part Number

DM413 Relative Products

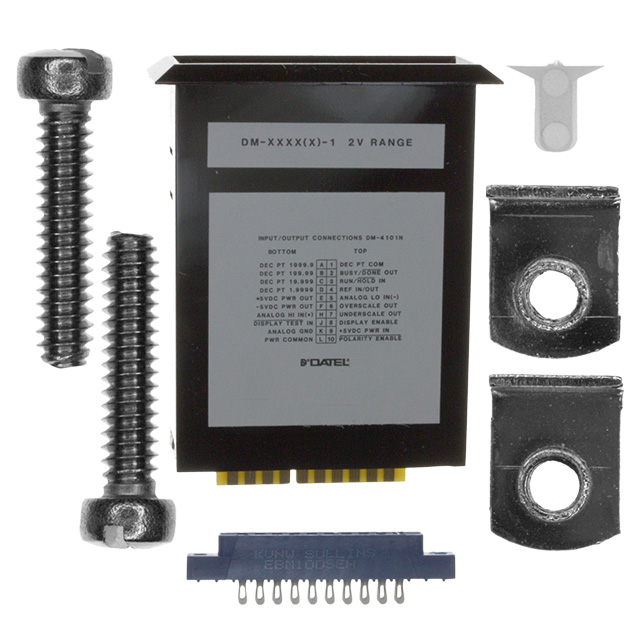

  • DM-4101N-1
