DM54LS151

Features: *Select one-of-eight data lines* Performs parallel-to-serial conversion* Permits multiplexing from N lines to one line* Also for use as Boolean function generator* Typical average propagation delay time data input to W output 12.5 ns* Typical power dissipation 30 mW* Alternate Military/A...

product image

DM54LS151 Picture
See larger image
SeekIC No. : 004326962 Detail

DM54LS151: Features: *Select one-of-eight data lines* Performs parallel-to-serial conversion* Permits multiplexing from N lines to one line* Also for use as Boolean function generator* Typical average propagat...

DM54LS151 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DM54LS151
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Select one-of-eight data lines
* Performs parallel-to-serial conversion
* Permits multiplexing from N lines to one line
* Also for use as Boolean function generator
* Typical average propagation delay time data input to W
   output 12.5 ns
* Typical power dissipation 30 mW
* Alternate Military/Aerospace device (54LS151) is available.
   Contact a National Semiconductor Sales Office/
   Distributor for specifications.


Pinout

Connection Diagram

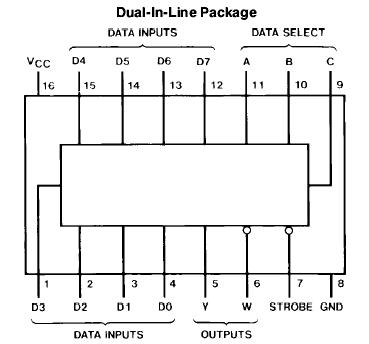

Connection Diagram


Specifications

Supply Voltage ....................................................................................7V
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
   DM54LS and 54LS ......................................................-55 to +125
   DM74LS .............................................................................0 to +70
Storage Temperature Range .........................................-65 to +150


Description

This DM54LS151 data selector/multiplexer contains full on-chip decoding to select the desired data source. The DM54LS151 selects one-of-eight data sources. The DM54LS151 has a strobe input which must be at a low logic level to enable these devices. A high level at the strobe forces the W output high, and the Y output low.

The DM54LS151 features complementary W and Y outputs.
