Product Details

Description



Features:

* Expand any data input point
* Multiplex dual data buses
* Generate four functions of two variables (one variable
   is common)
* Source programmable counters

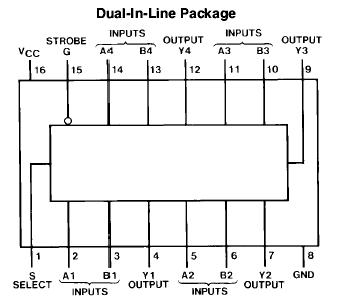

Pinout

Connection Diagram


Specifications

Supply Voltage ....................................................................................7V
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
   DM54LS and 54LS ......................................................-55 to +125
   DM74LS .............................................................................0 to +70
Storage Temperature Range .........................................-65 to +150


Description

These DM54LS157 data selectors/multiplexers contain inverters and drivers to supply full on-chip data selection to the four output gates. A separate strobe input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The DM54LS157 presents true data whereas the LS158 presents inverted data to minimize propagation delay time.
