Part Number: DM74AS804BN



MFG: TOSHIBA

Package Cooled: DIP

D/C: 66

Description: These devices contain six independent drivers, each of which performs the logic NAND function. Each dr...


Urgent Purchase

DM74AS804BN General Description


These devices contain six independent drivers, each of which performs the logic NAND function. Each driver has increased output drive capability to allow the driving of high capacitive loads.

DM74AS804BN Maximum Ratings

Supply Voltage ...........................................................7V
Input Voltage............................................................. 7V
Operating Free Air Temperature Range.... 0°C to +70°C
Storage Temperature Range.............. −65°C to +150°C
Typical JA
N Package .......................................................58.3°C/W
M Package .....................................................154.0°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.

DM74AS804BN Features

·  Switching specifications at 50 pF
·  Switching specifications guaranteed over full temperature
  and VCC range
·  Advanced oxide-isolated, ion-implanted Schottky TTL process
·  Functionally and pin for pin compatible with advanced
  low power Schottky TTL counter

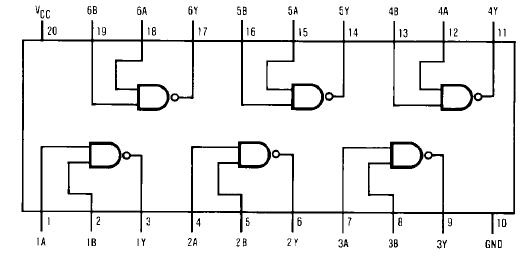

DM74AS804BN Connection Diagram

DM74AS804BN Connection Diagram

DM74AS804BN datasheet
