Part Number: DM74AS805BWM
Description: These devices contain six independent drivers, each of which performs the logic NOR function. Each dri...
- Table of contents:
DM74AS805BWM
-
Suppliers
DataSheet
General Description
DM74AS805BWM General Description
These devices contain six independent drivers, each of which performs the logic NOR function. Each driver has increased output drive capability to allow the driving of high capacitive loads
DM74AS805BWM Maximum Ratings
Supply Voltage ............................................................7V
Input Voltage ..............................................................7V
Operating Free Air Temperature Range...... 0°C to +70°C
Storage Temperature Range ................−65°C to +150°C
Typical JA
N Package .......................................................58.3°C/W
M Package .....................................................154.0°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.
Input Voltage ..............................................................7V
Operating Free Air Temperature Range...... 0°C to +70°C
Storage Temperature Range ................−65°C to +150°C
Typical JA
N Package .......................................................58.3°C/W
M Package .....................................................154.0°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.
DM74AS805BWM Features
· Switching specifications at 50 pF
· Switching specifications guaranteed over full temperature
· Advanced oxide-isolated, ion-implanted Schottky TTL process
· Functionally and pin for pin compatible with advanced
low power Schottky TTL counterpar
· Switching specifications guaranteed over full temperature
· Advanced oxide-isolated, ion-implanted Schottky TTL process
· Functionally and pin for pin compatible with advanced
low power Schottky TTL counterpar

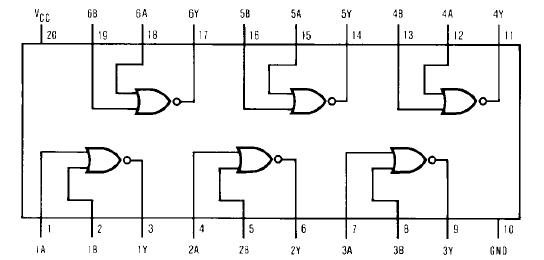

DM74AS805BWM Connection Diagram
DM74AS805BWM
PDF/DataSheet Download
- Datasheet: DM74AS805BWM
- File Size: 44303 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
