Part Number: DM74LS00



MFG: SOP

Package Cooled: 1500

D/C: 2

Description: This device contains four independent gates each of which performs the logic NAND function.


Urgent Purchase

DM74LS00 General Description


This device contains four independent gates each of which performs the logic NAND function.

DM74LS00 Maximum Ratings

Supply Voltage ...........................................................................................7V
Input Voltage .............................................................................................7V
Operating Free Air Temperature Range
   DM54LS and 54LS .............................................................-55 to +125
   DM74LS ....................................................................................0 to +70
Storage Temperature Range................................................ -65 to +150

DM74LS00 Features

* Alternate Military/Aerospace device (54LS00) is available.
   Contact a National Semiconductor Sales Office/
   Distributor for specifications.

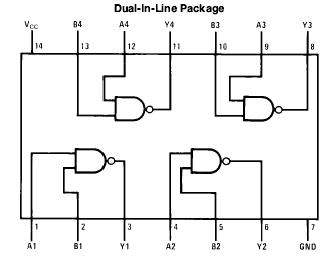

DM74LS00 Connection Diagram

DM74LS00 Connection Diagram

DM74LS00 datasheet

DM74LS00
PDF/DataSheet Download

  • Datasheet: DM74LS00
  • File Size: 61281 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
