Purchase DM74LS14, In-stock DM74LS14 From SeekIC.
MFG:FSC D/C:07+
Part Number: DM74LS14
MFG: FSC
D/C: 07+
Description: This device contains six independent gates each of which performs the logic INVERT function. Each inpu...
- Table of contents:
DM74LS14
-
Suppliers
DataSheet
General Description
DM74LS14 General Description
This device contains six independent gates each of which performs the logic INVERT function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output.
DM74LS14 Maximum Ratings
Supply Voltage ....................................................................................7V
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
DM54LS and 54LS ......................................................-55 to +125
DM74LS .............................................................................0 to +70
Storage Temperature Range .........................................-65 to +150
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
DM54LS and 54LS ......................................................-55 to +125
DM74LS .............................................................................0 to +70
Storage Temperature Range .........................................-65 to +150

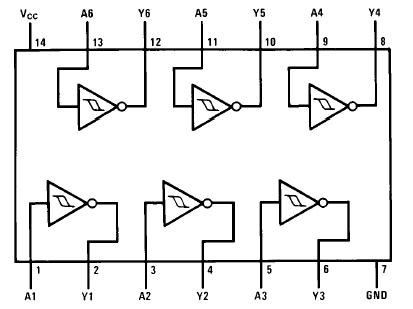

DM74LS14 Connection Diagram
DM74LS14
PDF/DataSheet Download
- Datasheet: DM74LS14
- File Size: 60233 KB
- Manufacturer: Fairchild
- Click here to Download
