Part Number: DM74LS158
Description: These data selectors/multiplexers contain inverters and drivers to supply full on-chip data selection ...
- Table of contents:
DM74LS158
-
Suppliers
DataSheet
General Description
DM74LS158 General Description
These data selectors/multiplexers contain inverters and drivers to supply full on-chip data selection to the four output gates. A separate strobe input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The LS157 presents true data whereas the LS158 presents inverted data to minimize propagation delay time.
DM74LS158 Maximum Ratings
Supply Voltage ....................................................................................7V
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
DM54LS and 54LS ......................................................-55 to +125
DM74LS .............................................................................0 to +70
Storage Temperature Range .........................................-65 to +150
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
DM54LS and 54LS ......................................................-55 to +125
DM74LS .............................................................................0 to +70
Storage Temperature Range .........................................-65 to +150
DM74LS158 Features
* Expand any data input point
* Multiplex dual data buses
* Generate four functions of two variables (one variable
is common)
* Source programmable counters
* Multiplex dual data buses
* Generate four functions of two variables (one variable
is common)
* Source programmable counters

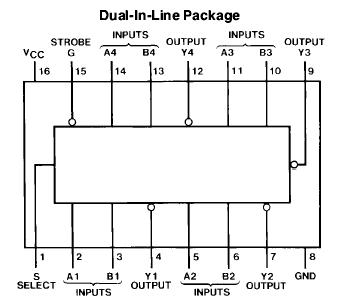

DM74LS158 Connection Diagram
DM74LS158
PDF/DataSheet Download
- Datasheet: DM74LS158
- File Size: 74332 KB
- Manufacturer: Fairchild
- Click here to Download
