DP8224

Features:

·Crystal-controlled oscillator for stable system operation
· Single chip clock generator and driver for 8080A microprocessor
· Provides status strobe for DP8228 or DP8238 system controllers
· Provides power-on reset for 8080A microprocessor
· Synchronizes READY input to 8080A microprocessor
·Provides oscillator output for synchronization of external circuits
·Reduces system component count

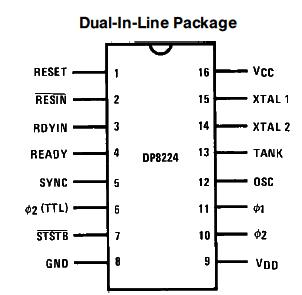

Pinout




Specifications

Supply Voltage
    VCC                                                                  7V
    VDD                                                                15V
Input Voltage                                         -1V to +5.5V
Storage Temperature Range              -65 to +150
Maximum Power Dissipation* at 25
    Cavity Package                                       1509 mW
    Molded Package                                      1476 mW
Lead Temperature (Soldering, 4 seconds)          260


Description

The DP8224 is a clock generator/driver contained in a standard, 16-pin dual-in-line package. The chip, which is fabricated using Schottky Bipolar technology, generates clocks and timing for the 8080A microcomputer family.

Included in the DP8224 is an oscillator circuit that is controlled by an external crystal, which is selected by the designer to meet a variety of system speed requirements. Also included in the chip are circuits that provide: a status strobe for the DP8228 or DP8238 system controllers, power-on reset for the 8080A microprocessor, and synchronization of the READY input to the 8080A.
