DP8473
-
Suppliers
DataSheet
General Description
DP8473 General Description
This controller is a full featured floppy disk controller that is software compatible with the mPD765A, but also includes many additional hardware and software enhancements. These enhancements include additional logic specifically required for an IBMÉ PC, PC-XTÉ, PC-ATÉ, or PS/2É design.
This controller incorporates a precision analog data separator, that includes a self trimming delay line and VCO. Up to three external filters are switched automatically depending on the data rate selected. This provides optimal performance at the standard PC data rates of 250/300 kb/s, and 500 kb/s. It also enables optimum performance at 1 Mb/s (MFM). These features combine to provide the lowest possible PLL bandwidth, with the greatest lock range, and hence the widest window margin.
This controller includes write precompensation circuitry. A shift register is used to provide a fixed 125 ns early-late precompensation for all tracks at 500k/300k/250 kb/s (83 ns for 1 MB/s), or a precompensation value that scales with the data rate, 83 ns/125 ns/208 ns/ 250 ns for data rates of 1.0M/500k/300k/250 kb/s respectively.
Specifically to support the PC-AT and PC-XT design, the Floppy Disk Controller PLUS-2 includes address decode for the A0±A2 address lines, the motor/drive select register, data rate register for selecting 250/300/500 kb/s, Disk Changed status, dual speed spindle motor control, low write current and DMA/interrupt sharing logic. The controller also supports direct connection to the mP bus via internal 12 mA buffers. The controller also can be connected directly to the disk drive via internal open drain high drive outputs, and Schmitt inputs.
In addition to this logic the DP8473 includes many features to ease design of higher performance drives and future controller upgrades. These include 1.0 Mb/s data rate, extended track range to 4096, Implied seeking, working Scan Commands, motor control timing, both standard IBM formats as well as Sony 3.5× (ISO) formats, and other enhancements. This device is available in a 52 pin Plastic Chip Carrier, and in a 48 pin Dual-In-Line package.
DP8473 Maximum Ratings
Supply Voltage (VCC) -0.5V to+7V
DC Input Voltage (VIN) -0.5V to VCC+0.5V
DC Output Voltage (VOUT) -0.5V to VCC +0.5V
Storage Temperature Range (TSTG) -65 to+165
Package Power Dissipation (PD) 750 mW
Lead Temperature (TL)
(Soldering, 10 seconds) 260
lVCC±VCCAl 0.6V
DC Input Voltage (VIN) -0.5V to VCC+0.5V
DC Output Voltage (VOUT) -0.5V to VCC +0.5V
Storage Temperature Range (TSTG) -65 to+165
Package Power Dissipation (PD) 750 mW
Lead Temperature (TL)
(Soldering, 10 seconds) 260
lVCC±VCCAl 0.6V
DP8473 Features
· Fully mPD765A and IBM-BIOS compatible
· Integrates all PCXTÉ, PCATÉ, and most PS/2É Logic
- On chip 24 MHz Crystal Oscillator
- DMA enable logic
- IBM compatible address decode of A0±A2
- 12 mA mP bus interface buffers
- 48 mA floppy drive interface buffers
- Data rate and drive control registers
· Precision analog data separator
- Self-calibrating PLL and delay line
- Automatically chooses one of three filters
- Intelligent read algorithm
·Two pin programmable precompensation modes
· Other enhancements
- up to 1 Mb/s data rate
- Implied seek up to 4000 tracks
- IBM or ISO formatting
· Low power CMOS, with power down mode
· Integrates all PCXTÉ, PCATÉ, and most PS/2É Logic
- On chip 24 MHz Crystal Oscillator
- DMA enable logic
- IBM compatible address decode of A0±A2
- 12 mA mP bus interface buffers
- 48 mA floppy drive interface buffers
- Data rate and drive control registers
· Precision analog data separator
- Self-calibrating PLL and delay line
- Automatically chooses one of three filters
- Intelligent read algorithm
·Two pin programmable precompensation modes
· Other enhancements
- up to 1 Mb/s data rate
- Implied seek up to 4000 tracks
- IBM or ISO formatting
· Low power CMOS, with power down mode

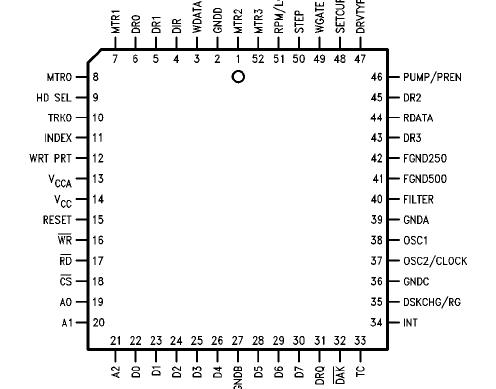

DP8473 Connection Diagram
DP8473
PDF/DataSheet Download
- Datasheet: DP8473
- File Size: 366021 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·DP802518
- National Semiconductor
- 167262 KB
- ·DP8212
- NSC [National Semiconductor]
- 8-Bit Input/Output Port
- 193680 KB
- ·DP8212J
- NSC [National Semiconductor]
- 8-Bit Input/Output Port
- 193680 KB
- ·DP8212MJ
- NSC [National Semiconductor]
- 8-Bit Input/Output Port
- 193680 KB
- ·DP8212N
- NSC [National Semiconductor]
- 8-Bit Input/Output Port
- 193680 KB
- ·DP8216
- NSC [National Semiconductor]
- 4-Bit Bidirectional Bus Transceivers
- 120918 KB
- ·DP8216J
- NSC [National Semiconductor]
- 4-Bit Bidirectional Bus Transceivers
- 120918 KB
- ·DP8216MJ
- NSC [National Semiconductor]
- 4-Bit Bidirectional Bus Transceivers
- 120918 KB
DP8473 Relative Products
DP8464B
The DP8464B Disk Pulse Detector utilizes analog and digital circuitry to detect amplitude peaks of the signal received from the read/write amplifier fitted with the heads of disk drives. The DP8464B produces a TTL compatible output which, on the positive lea...
DP8459
The DP8459 Data Synchronizer is an integrated phase locked loop circuit which has been designed for application in magnetic hard disk, flexible (floppy) disk, optical disk, and tape drive memory systems for data re-synchronization and clock recovery with any...
DP8432V-33
The DP8430V31V32V dynamic RAM controllers provide a low cost single chip interface between dynamic RAM and all 8- 16- and 32-bit systems The DP8430V31V32V generate all the required access control signal timing for DRAMs An on-chip refresh request clock is us...
DP8431V
The DP8430V31V32V dynamic RAM controllers provide a low cost single chip interface between dynamic RAM and all 8- 16- and 32-bit systems The DP8430V31V32V generate all the required access control signal timing for DRAMs An on-chip refresh request clock is us...
DP8430V
The DP8430V31V32V dynamic RAM controllers provide a low cost single chip interface between dynamic RAM and all 8- 16- and 32-bit systems The DP8430V31V32V generate all the required access control signal timing for DRAMs An on-chip refresh request clock is us...
DP8429/NS32829
The DP8428 and DP8429 1M DRAM Controller/Drivers are designed to provide ``No-Waitstate'' CPU interface to Dynamic RAM arrays of up to 8 Mbytes and larger. The DP8428 and DP8429 are tailored for 32-bit and 16-bit system requirements, respectively. Both devic...
