Product Details

Description

Features:

• Ultra compact and light package (2.5 mm ´ 2.0 mm ´ 0.9 mm (h) *)
*: 1.0 mm height maximum
• Excellent stop band attenuation
• External matching are not required (50 W I/O)
• Standard devices are available for mobile communication standards

Pinout

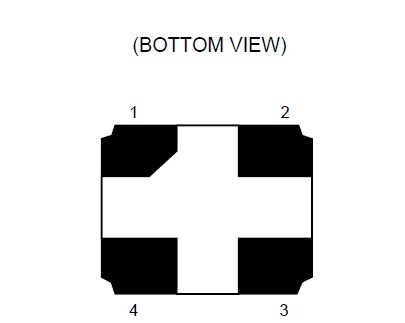

Connection Diagram

Specifications

Parameter		Symbol	Rating		Unit
Parameter		Symbol	Min.	Max.	Unit
Ambient operating temperature		Ta	-30	+85	°C
Storage temperature		Tstg	-40	+100	°C
Input power	F5CP Series	Pin	_	+15	dBm
Input power	F6CP Series	Pin	_	+10	dBm
Input DC voltage		_	-5	+5	V

Description

The DS04-23122-3E of SAW band pass filters have 2.5 mm ´ 2.0 mm ´ 0.9 mm (h) of ultra small package, which are available in the 700 to 2000 MHz frequency range. They exhibit high stability by using single crystal, Lithium Tantalate (LiTaO3) with a large electro-mechanical coefficient.

Typical applications for the DS04-23122-3E include RF interstage filtering in mobile communications systems. Standard devices are available for AMPS, GSM, EGSM, PDC800, PDC1.5G.
