DS1330Y

Features:

10 years minimum data retention in the  absence of external power
Data is automatically protected during power loss
Power supply monitor resets processor when VCC power loss occurs and holds processor in reset during VCC rampup
Battery monitor checks remaining capacity daily
Read and write access times as fast as 70ns
Unlimited write cycle endurance
Typical standby current 50
A
Upgrade for 32k x 8 SRAM, EEPROM or Flash
Lithium battery is electrically disconnected to retain freshness until power is applied for the first time
Full 10% VCC operating range (DS1330Y) or optional 5% VCC operating range(DS1330AB)
Optional industrial temperature range of -40C to +85C, designated IND
PowerCap Module (PCM) package
      -  Directly surface-mountable module
      -  Replaceable snap-on PowerCap provides lithium backup battery
      -  Standardized pinout for all nonvolatile (NV) SRAM products
      -  Detachment feature on PowerCap allows easy  removal using a regular screwdriver

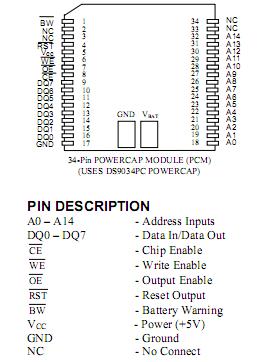

Pinout




Specifications

Voltage on Any Pin Relative to Ground                                              -0.3V to +7.0V
Operating Temperature Range         0°C to 70°C, -40°C to +85°C for IND parts
Storage Temperature Range       -40°C to +70°C, -40°C to +85°C for IND parts
Soldering Temperature                                                          260°C for 10 seconds


Description

The DS1330 256k NV SRAMs are 262,144-bit, fully static, NV SRAMs organized as 32,768 words by 8bits. Each NV SRAM DS1330 has a self-contained lithium energy source and control circuitry which constantly monitors VCC for an out-of-tolerance condition.  When such a condition occurs, the lithium energy source is automatically switched on and write protection is unconditionally enabled to prevent data corruption.Additionally, the DS1330 devices have dedicated circuitry for monitoring the status of VCC and the status of the internal lithium battery. DS1330 devices in the PowerCap module package are directly surface mountable and are normally paired with a DS9034PC PowerCap to form a complete NV SRAM module.The devices can be used in place of 32k x 8 SRAM, EEPROM, or Flash components.
