DS2174

Features: · Generates and detects digital patterns for analyzing and trouble-shooting digital communications systems· Programmable polynomial length and feedback taps for generation of any pseudorandom patterns up to 232 - 1; up to 32 taps can be used in the feedback path· Programmable, user-defin...

product image

DS2174 Picture
See larger image
SeekIC No. : 004328807 Detail

DS2174: Features: · Generates and detects digital patterns for analyzing and trouble-shooting digital communications systems· Programmable polynomial length and feedback taps for generation of any pseudoran...

DS2174 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS2174
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Generates and detects digital patterns for analyzing and trouble-shooting digital communications systems
· Programmable polynomial length and feedback taps for generation of any pseudorandom patterns up to 232 - 1; up to 32 taps can be used in the feedback path
· Programmable, user-defined pattern registers for long repetitive patterns up to 512 bytes in length
· Large 48-bit count and bit error count registers
· Software-programmable bit error insertion
· Fully independent transmit and receive paths
· 8-bit parallel-control port
· Detects polynomial test patterns in the presence of bit error rates up to 10-2
· Programmable for serial, 4-bit parallel, or 8-bit parallel data interfaces
· Serial mode clock rate is 155MHz; byte mode is 80MHz for a net 622Mbps; OC-3
· Available in 44-pin PLCC


Application

· Routers
· Channel Service Units (CSUs)
· Data Service Units (DSUs)
· Muxes
· Switches
· Digital-to-Analog Converters (DACs)
· CPE Equipment
· Bridges
· Smart Jack


Pinout

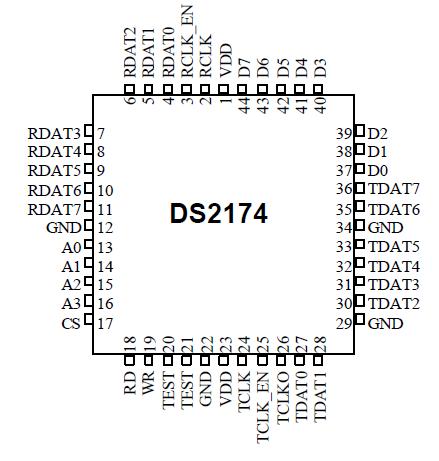

Connection Diagram


Specifications

Voltage Range on Any Pin Relative to Ground                 -1.0V to +5.5V
Operating Temperature Range for DS2174QN                -40 to +85
Storage Temperature Range                                        -55 to +125
Soldering Temperature Range                      See IPC/JEDEC J-STD-020A


Description

The DS2174 enhanced bit error rate tester (EBERT) is a software-programmable test-pattern generator, receiver, and analyzer capable of meeting the most stringent error-performance requir ements of digital transmission facilities. It features bit-serial, nibble-parallel, and byte-parallel data interfaces, and generates and uniquely synchronizes to pseudorandom patterns of the form 2n - 1, where n can take on values from 1 to 32, and user-defined repetitive patterns of any length up to 512 octets.
