DS21Q50

Features: Four Complete E1 (CEPT) PCM-30/ISDN-PRI Transceivers 32-Bit or 128-Bit Crystal-Less Jitter Attenuator Frames to FAS, CAS, CCS, and CRC4 Formats 4MHz/8MHz/16MHz Clock Synthesizer Flexible System Clock with Automatic Source Switching on Loss-of-Clock Source Two-Frame Elastic-Store Slip Buf...

product image

DS21Q50 Picture
See larger image
SeekIC No. : 004328815 Detail

DS21Q50: Features: Four Complete E1 (CEPT) PCM-30/ISDN-PRI Transceivers 32-Bit or 128-Bit Crystal-Less Jitter Attenuator Frames to FAS, CAS, CCS, and CRC4 Formats 4MHz/8MHz/16MHz Clock Synthesizer Flexible S...

DS21Q50 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS21Q50
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Four Complete E1 (CEPT) PCM-30/ISDN-PRI Transceivers
32-Bit or 128-Bit Crystal-Less Jitter Attenuator
Frames to FAS, CAS, CCS, and CRC4 Formats
4MHz/8MHz/16MHz Clock Synthesizer
Flexible System Clock with Automatic Source Switching on Loss-of-Clock Source
Two-Frame Elastic-Store Slip Buffer on the Receive Side
Interleaving PCM Bus Operation Up to 16.384MHz
Configurable Parallel and Serial Port Operation
Detects and Generates Remote and AIS Alarms
Fully Independent Transmit and Receive Functionality
Four Separate Loopback Functions
PRBS Generation/Detection/Error Counting
3.3V Low-Power CMOS
Large Counters for Bipolar and Code Violations, CRC4 Codeword Errors, FAS Word Errors, and E Bits
Eight Additional User-Configurable Output Pins
100-Pin, 14mm x 14mmLQFP Package



Application

DSLAMs Routers IMA and WAN Equipment

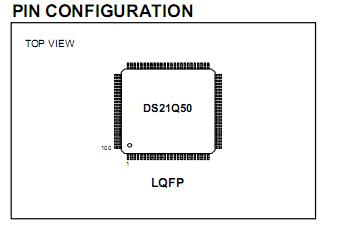

Pinout

Connection Diagram


Specifications

Voltage Range on Any Pin Relative to Ground.................-1.0V to +6.0V
Operating Temperature Range for DS21Q50L....................0 to +70
Operating Temperature Range for DS21Q50LN...............-40 to +85
Storage Temperature Range.....................................-.....55 to +125
Soldering Temperature..............See IPC/JEDEC J-STD-020A Specification


Description

The DS21Q50 E1 quad transceiver contains all the necessary functions for connecting to four E1 lines. The on-board clock/data recovery circuitry coverts the AMI/HDB3 E1 waveforms to an NRZ serial stream. The DS21Q50 automatically adjusts to E1 22AWG (0.6mm) twisted-pair cables from 0km to over 2km in length. The device can generate the necessary G.703 waveshapes for both 75 coax and 120 twisted-pair cables. The on-board jitterattenuators (selectable to either 32 bits or 128 bits) can be placed in either the transmit or receive data paths. The framers locate the frame and multiframe boundaries and monitor the data streams for alarms.

The DS21Q50 device contains a set of internal registers, from which the user can access and control the operation of the unit by the parallel control port or serial port. The device fully meets all the latest E1 specificationsincluding ITU-T G.703, G.704, G.706, G.823, G.732, and I.431 ETS 300 011, ETS 300 233, and ETS 300 166 as well as CTR12 and CTR4.
