Purchase DS26C32AT, In-stock DS26C32AT From SeekIC.
Part Number: DS26C32AT
Description: The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1...
- Table of contents:
DS26C32AT
-
Suppliers
DataSheet
General Description
DS26C32AT General Description
The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS.
The DS26C32A has an input sensitivity of 200 mV over the common mode input voltage range of ±7V. The DS26C32A features internal pull-up and pull-down resistors which prevent output oscillation on unused channels.
The DS26C32A provides an enable and disable function common to all four receivers, and features TRI-STATE ® outputs with 6 mA source and sink capability. This product is pin compatible with the DS26LS32A and the AM26LS32.
DS26C32AT Maximum Ratings
Supply Voltage (VCC) ......................................................................7V
Common Mode Range (VCM) ......................................................±14V
Differential Input Voltage (V DIFF).............................................. ±14V
Enable Input Voltage (V IN) .............................................................7V
Storage Temperature Range (T STG) ......................−65°C to +150°C
Lead Temperature (Soldering 4 sec.) ........................................260°C
Maximum Power Dissipation at 25°C (Note 5)
Ceramic "J" Pkg. ....................................2308 mW
Plastic "N" Pkg. ....................................1645 mW
SOIC "M" Pkg. .......................................1190 mW
Ceramic "E" Pkg. ...................................2108 mW
Ceramic "W" Pkg. ..................................1215 mW
Maximum Current Per Output..................................................... ±25 mA
Common Mode Range (VCM) ......................................................±14V
Differential Input Voltage (V DIFF).............................................. ±14V
Enable Input Voltage (V IN) .............................................................7V
Storage Temperature Range (T STG) ......................−65°C to +150°C
Lead Temperature (Soldering 4 sec.) ........................................260°C
Maximum Power Dissipation at 25°C (Note 5)
Ceramic "J" Pkg. ....................................2308 mW
Plastic "N" Pkg. ....................................1645 mW
SOIC "M" Pkg. .......................................1190 mW
Ceramic "E" Pkg. ...................................2108 mW
Ceramic "W" Pkg. ..................................1215 mW
Maximum Current Per Output..................................................... ±25 mA
DS26C32AT Features
CMOS design for low power
±0.2V sensitivity over input common mode voltage range
Typical propagation delays: 19 ns
Typical input hysteresis: 60 mV
Inputs won't load line when VCC = 0V
Meets the requirements of EIA standard RS-422
TRI-STATE outputs for connection to system buses
Available in Surface Mount
Mil-Std-883C compliant
±0.2V sensitivity over input common mode voltage range
Typical propagation delays: 19 ns
Typical input hysteresis: 60 mV
Inputs won't load line when VCC = 0V
Meets the requirements of EIA standard RS-422
TRI-STATE outputs for connection to system buses
Available in Surface Mount
Mil-Std-883C compliant
DS26C32AT Connection Diagram
DS26C32AT
PDF/DataSheet Download
- Datasheet: DS26C32AT
- File Size: 369630 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·DS2
- Linear
- Simple Differential Front-End for the LTC2400
- 68288 KB
- ·DS2002SF
- DYNEX [Dynex Semiconductor]
- Rectifier Diode
- 93862 KB
- ·DS2002SF13
- DYNEX [Dynex Semiconductor]
- Rectifier Diode
- 93862 KB
- ·DS2002SF14
- DYNEX [Dynex Semiconductor]
- Rectifier Diode
- 93862 KB
- ·DS2002SF15
- DYNEX [Dynex Semiconductor]
- Rectifier Diode
- 93862 KB
- ·DS2002SF16
- DYNEX [Dynex Semiconductor]
- Rectifier Diode
- 93862 KB
- ·DS2002SF17
- DYNEX [Dynex Semiconductor]
- Rectifier Diode
- 93862 KB
- ·DS2002SF18
- DYNEX [Dynex Semiconductor]
- Rectifier Diode
- 93862 KB
DS26C32AT Relative Products
DS26C32AME/883
The DS26C32AME/883 is one member of the DS26C32AME family. The DS26C32AME/883 is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining...
DS26C32AM
The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS. The DS26C32A has an inpu...
DS26C31TN/NOPB
IC LINE DRIVER QUAD CMOS 16-DIP

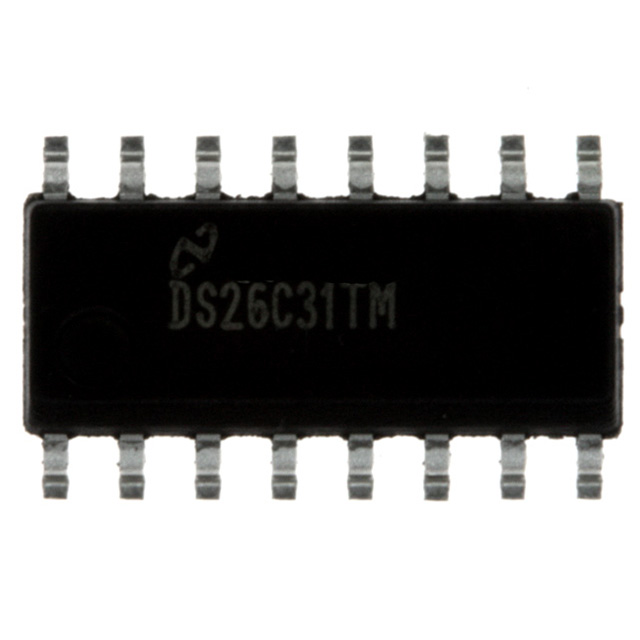

DS26C31TMX/NOPB
