DS32EL0421

PinoutSpecificationsFunctionSerializerTotal Throughput3125 MbpsPayload/Channel3125 MbpsSignal ConditioningDe-EmphasisClock Min125 MHzClock Max312.5 MHzInput CompatibilityLVDSOutput CompatibilityCMLReference Clock Req'd DeserializerNoPower Consumption_500 mWReach20 meters CAT6Other Supply2.5SupplyV...

product image

DS32EL0421 Picture
See larger image
SeekIC No. : 004328995 Detail

DS32EL0421: PinoutSpecificationsFunctionSerializerTotal Throughput3125 MbpsPayload/Channel3125 MbpsSignal ConditioningDe-EmphasisClock Min125 MHzClock Max312.5 MHzInput CompatibilityLVDSOutput CompatibilityCMLR...

DS32EL0421 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS32EL0421
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

FunctionSerializer
Total Throughput3125 Mbps
Payload/Channel3125 Mbps
Signal ConditioningDe-Emphasis
Clock Min125 MHz
Clock Max312.5 MHz
Input CompatibilityLVDS
Output CompatibilityCML
Reference Clock Req'd DeserializerNo
Power Consumption_500 mW
Reach20 meters CAT6
Other Supply2.5
SupplyVoltage3.3 Volt
ESD8 kV
Temperature Min-40 deg C
Temperature Max85 deg C
Compression Ratio5:1 DDR
Number Transmitters1
CommunicationsYes
Sensing & ImagingYes
Parallel Bus Width5 bits
View Using Catalog



Description

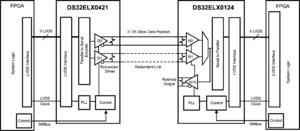

The DS32EL0421/ DS32ELX0421 is a 125 MHz to 312.5 MHz (DDR) serializer for high-speed serial transmission over FR-4 printed circuit board backplanes, balanced cables, and optical fiber. This easy-to-use chipset integrates advanced signal and clock conditioning functions, with an FPGA friendly interface.

The DS32EL0421/DS32ELX0421 serializes up to 5 parallel input LVDS channels to create a maximum data payload of 3.125 Gbps. If the integrated DC-balance encoding is enabled, the maximum data payload achievable is 2.5 Gbps.

The DS32EL0421/DS32ELX0421 serializers feature remote sense capability to automatically detect and negotiate link status with its companion DS32EL0124/DS32ELX0124 deserializers without requiring an additional feedback path.

The parallel LVDS interface reduces FPGA I/O pins, board trace count and alleviates EMI issues, when compared to traditional single-ended wide bus interfaces.

The DS32EL0421/DS32ELX0421 is programmable through a SMBus interface as well as through control pins.
