DS3508

Features: · 8-Bit Gamma DACs, 8 Channels· 1 Byte EEPROM and 1 Byte SRAM per Channel· Ultra-Low Power (2mA IDD, typ)· 400kbps I2C Interface· 9.0V to 15.5V Analog Supply· 2.7V to 5.5V Digital Supply· 20-Pin TSSOP Package· Address Pin Allows Two DS3508s to Reside on the Same I2C BusApplicationTFT-LCD...

product image

DS3508 Picture
See larger image
SeekIC No. : 004329018 Detail

DS3508: Features: · 8-Bit Gamma DACs, 8 Channels· 1 Byte EEPROM and 1 Byte SRAM per Channel· Ultra-Low Power (2mA IDD, typ)· 400kbps I2C Interface· 9.0V to 15.5V Analog Supply· 2.7V to 5.5V Digital Supply· ...

DS3508 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS3508
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 8-Bit Gamma DACs, 8 Channels
· 1 Byte EEPROM and 1 Byte SRAM per Channel
· Ultra-Low Power (2mA IDD, typ)
· 400kbps I2C Interface
· 9.0V to 15.5V Analog Supply
· 2.7V to 5.5V Digital Supply
· 20-Pin TSSOP Package
· Address Pin Allows Two DS3508s to Reside on
    the Same I2C Bus


Application

TFT-LCD Gamma Buffer Industrial Controls


Pinout

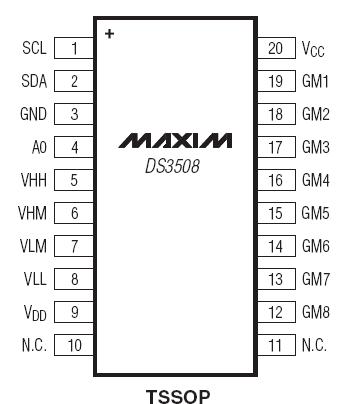

Connection Diagram


Specifications

Voltage Range on VDD and
VHH Relative to GND .........................................-0.5V to +16V
Voltage Range on VHM, VLM, and
VLL Relative to GND...........................................-0.5V to +12V
Voltage Range on VCC, SDA, SCL, and
A0 Relative to GND ..........................................-0.5V to +6.0V
Junction Temperature..................................................+125°C
Operating Temperature Range ......................-45°C to +95°C
Programming Temperature Range ....................0°C to +70°C
Storage Temperature....................................55°C to +125°C
Soldering Temperature ........................................Refer to the
IPC/JEDEC J-STD-020 Specification.


Description

The DS3508 is a programmable 8-channel gamma voltage generator with one byte of on-chip EEPROM and one byte of SRAM memory per channel. Each channel is composed of an independent 8-bit DAC with an associated EEPROM/SRAM pair. At power-up, nonvolatile (NV) EEPROM gamma data is loaded into its corresponding SRAM register that drives the associated 8-bit DAC. An on-chip control register allows selectable control of writing to SRAM/EEPROM or SRAM only.

The DS3508 is designed for low-power operation and draws less than 2mA (typ) from the VDD supply. Programming occurs through an I2C-compatible serial interface with support for speeds up to 400kHz.
