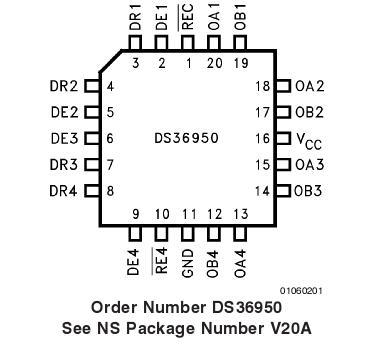

Features: Pinout for IPI interface
Compact 20-pin PLCC package
Meets EIA-485 standard for multipoint bus transmission
Greater than 60 mA source/sink
Thermal Shutdown ProtectionPinout
Specifications
| Function |
Transceiver |
| Channels |
4 Channels |
| Max Data Rate |
10 Mbps |
| SupplyVoltage |
5 Volt |
| Process |
LFAST |
| Special Features |
IPI Interface |
| Temperature Min |
0 deg C |
| Temperature Max |
70 deg C |
| JTAG1149.1 |
No |
| Drivers |
4 |
| Receivers |
4 |
| View Using Catalog |
If Military/Aerospace specified devices are required,pleasecontacttheNationalSemiconductorSalesOffice/Distributors for availability and specifications.
Supply Voltage 7V
Control Input Voltage VCC + 0.5V
Driver Input Voltage VCC + 0.5V
Driver Output Voltage/Receiver
Input Voltage -10V to +15V
Receiver Output Voltage 5.5V
Continuous Power Dissipation @25
V Package 1.73W
Derate V Package 13.9 mW/above 25
Storage Temp. Range -65to +150
Lead Temp. (Soldering 4 Sec.) 260DescriptionThe DS36950 is a low power, space-saving quad EIA-485 differential bus transceiver especially suited for high speed, parallel, multipoint, computer I/O bus applications. A compact 20-pin surface mount PLCC package provides high transceiver integration and a very small PC board footprint.
Timing uncertainty across an interface DS36950 using multiple devices, a typical problem in a parallel interface, is specified-minimum and maximum propagation delay times are guaranteed.
Six devices DS36950 can implement a complete IPI master or slave interface. Three transceivers in a package are pinned out for connection to a parallel databus. The fourth transceiver, with the flexibility provided by its individual enables, can serve as a control bus transceiver.
Reliability Metrics
| Part Number |
Process |
EFR Reject |
EFR Sample Size |
PPM |
LTA Rejects |
LTA Device Hours |
FITS |
MTTF (Hours) |
| DS36950V |
LFAST1 |
0 |
18610 |
0 |
0 |
2335000 |
2 |
662562625 |
| DS36950VX |
LFAST1 |
0 |
18610 |
0 |
0 |
2335000 |
2 |
662562625 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.For more information on Reliability Metrics, please click here.
