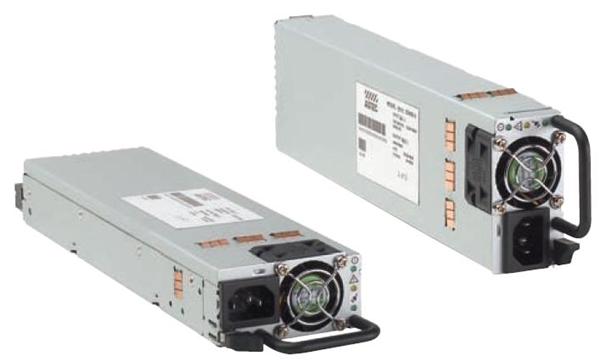

DS450-3

Output Voltage (Channel 2) :
Output Current (Channel 2) :
Output Voltage (Channel 3) :
Output Current (Channel 3) :
Commercial/Medical :
Dimensions :
Product : Switching Supplies
Input Voltage : 90 VAC to 264 VAC
Number of Outputs : 1
Output Voltage (Channel 1) : 12 VDC
Mounting Style : Chassis
Output Current (Channel 1) : 70 A
Output Power Rating : 450 W


Features:

• Active Power Factor Correction
• EN61000-3-2 Harmonic Compliance
• Active AC Inrush Control
• 1U X 2U Form Factor
• 10.3W / in3 (DS550) 8.4W / in3 (DS450)
• +12vdc Output
• +3.3vdc Stand-By
• No Minimum Load Required
• Hot Plug Operation
• N + 1 Redundant
• Internal OR'ing Fets
• Active Current Sharing
• Built-in Cooling Fans (40mm x 28mm)
• I2C Communication Interface Bus
• EERPOM for FRU Data
• Amber LED Status, Fan_Fail
• Green LED Status, Power Good / AC_OK Status
• Internal Fan Speed Control
• Fan Fail Tach Output Signal
• One Year Warranty
