Part Number: DS52-0008
Description: M/A-COM's DS52-0008 is an IC-based monolithic power divider using M/A-COM's GMIC technology in a low c...
- Table of contents:
DS52-0008
-
Suppliers
DataSheet
General Description
DS52-0008 General Description
M/A-COM's DS52-0008 is an IC-based monolithic power divider using M/A-COM's GMIC technology in a low cost SOT-26 plastic package. This 2-way power divider is ideally suited for
applications where small size, low insertion loss, superior phase/ amplitude tracking and low cost are required. Typical applications include personal communications systems and other
communication applications where size and PCB real estate are ata premium. Available in Tape and Reel.
The DS52-0008 is fabricated using a passive-integrated circuit process. The process features full-chip passivation for increased performance and reliability.
DS52-0008 Maximum Ratings
| Parameter | Absolute Maximum |
| Input Power2 Operating Temperature Storage Temperature |
1 W CW -40°C to +85°C -65°C to +150°C |
DS52-0008 Features
· Small Size and Low Profile
· Industry Standard SOT-26 SMT Plastic Package
· Typical Isertion Loss: 0.6dB
· Typical Isolation: 15dB
· 1 Watt Power Handlin
· Industry Standard SOT-26 SMT Plastic Package
· Typical Isertion Loss: 0.6dB
· Typical Isolation: 15dB
· 1 Watt Power Handlin

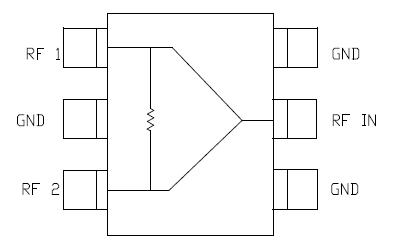

DS52-0008 Connection Diagram
DS52-0008
