General Description
DS5250 General Description
The DS5250 is a highly secure, 4 clocks-per-machine cycle, 100% 8051-instruction-set-compatible microprocessor in the Secure Microcontroller family from Dallas Semiconductor. It was designed to be the cryptographic engine of PIN pads, financial terminals, and any other application in which data security is paramount. A key feature of the device is that it encrypts its program memory with a hardware-based single or triple (3) DES (data encryption standard) algorithm, making it nearly impossible to extract information. Another DES (3DES) hardware block is available to the user for encrypting arbitrary information in data memory space. This makes the device ideal for storage and transmission of passwords, personal identification numbers, encryption keys, and other highly confidential information.
DS5250 Features
* Drop-In Upgrade to the Dallas DS5240
*Feature-Rich, 8051-Compatible, Highly Secure Microcontroller
Accesses Up to 4MB Program and 4MB Data Memory
(All Nonvolatile)
In-System Programmable through Serial Port
In-Application Programmable through User Software;
Allows Self-Modification of Program/Data Memory
Four 8-Bit Ports/One 6-Bit Port
Three 16-Bit Timer/Counters
256 Bytes of Scratchpad RAM
*Advanced Features
CRC-16/32 Generator
5kB Internal SRAM (Optional 1kB Stack)
Single or 3DES Engine
Partitionable Memory Segments Variable from 4kB to 256kB
*High-Speed Architecture
4 Clocks-per-Machine Cycle
DC-to-25MHz Operation
Single-Cycle Instruction in 160ns
Dual Data Pointers can Increment or Decrement
Independently
Automatic Data Pointer Selection Available
Programmable Speed MOVX Instructions
1kB On-Chip Instruction Cache
* High-Reliability Operation
Power-Fail/Overvoltage Reset
Early-Warning Power-Fail Interrupt
Watchdog Timer
*Nonvolatile Functions
On-Chip Real-Time Clock with Alarm Interrupt
2kB Battery-Backed Internal SRAM
*Security Features
Designed to Meet the Physical Security Requirements
of FIPS-140 and Common Criteria Certifications
Program Memory Integrity Checking
Executes Single/3DES-Encrypted Programs to
Prevent Observation
Separate Program/Data Cryptograph
Two Self-Destruct Inputs
4096-Bit Modulo-Arithmetic Accelerator (MAA) for PKI
Operations
Built-In Sensors Detect Attack and Cause Security
Response
Programmable Attack Countermeasures
Secure Bootstrap Loader
True Random-Number Generator (RNG)
Unique ID Number in Every Device
*Feature-Rich, 8051-Compatible, Highly Secure Microcontroller
Accesses Up to 4MB Program and 4MB Data Memory
(All Nonvolatile)
In-System Programmable through Serial Port
In-Application Programmable through User Software;
Allows Self-Modification of Program/Data Memory
Four 8-Bit Ports/One 6-Bit Port
Three 16-Bit Timer/Counters
256 Bytes of Scratchpad RAM
*Advanced Features
CRC-16/32 Generator
5kB Internal SRAM (Optional 1kB Stack)
Single or 3DES Engine
Partitionable Memory Segments Variable from 4kB to 256kB
*High-Speed Architecture
4 Clocks-per-Machine Cycle
DC-to-25MHz Operation
Single-Cycle Instruction in 160ns
Dual Data Pointers can Increment or Decrement
Independently
Automatic Data Pointer Selection Available
Programmable Speed MOVX Instructions
1kB On-Chip Instruction Cache
* High-Reliability Operation
Power-Fail/Overvoltage Reset
Early-Warning Power-Fail Interrupt
Watchdog Timer
*Nonvolatile Functions
On-Chip Real-Time Clock with Alarm Interrupt
2kB Battery-Backed Internal SRAM
*Security Features
Designed to Meet the Physical Security Requirements
of FIPS-140 and Common Criteria Certifications
Program Memory Integrity Checking
Executes Single/3DES-Encrypted Programs to
Prevent Observation
Separate Program/Data Cryptograph
Two Self-Destruct Inputs
4096-Bit Modulo-Arithmetic Accelerator (MAA) for PKI
Operations
Built-In Sensors Detect Attack and Cause Security
Response
Programmable Attack Countermeasures
Secure Bootstrap Loader
True Random-Number Generator (RNG)
Unique ID Number in Every Device
DS5250 Typical Application
PIN Pads
Financial Terminals
Applications that Require Data Security
Financial Terminals
Applications that Require Data Security

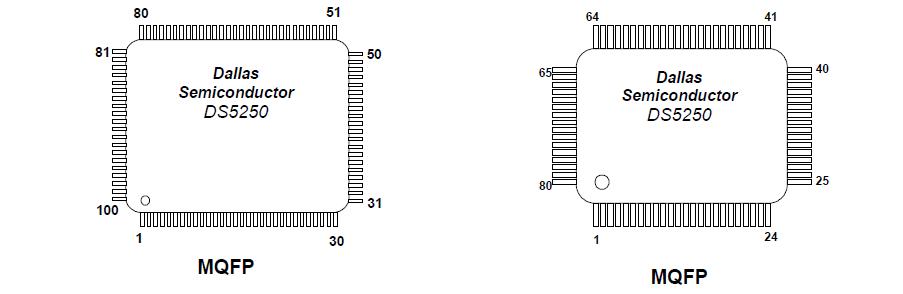

DS5250 Connection Diagram
