DS54-0006

Features: • Low Cost• Small Size and Low Profile• Industry Standard SOIC-16 SMT Plastic Package• Excellent Repeatability (Lot-to-Lot Variation)• Typical Isolation: 23dB• Typical Amplitude Balance: 0.8dB• Typical Insertion Loss: 1.4dBPinoutSpecifications ...

product image

DS54-0006 Picture
See larger image
SeekIC No. : 004329153 Detail

DS54-0006: Features: • Low Cost• Small Size and Low Profile• Industry Standard SOIC-16 SMT Plastic Package• Excellent Repeatability (Lot-to-Lot Variation)• Typical Isolation: 23dB...

DS54-0006 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS54-0006
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Cost
• Small Size and Low Profile
• Industry Standard SOIC-16 SMT Plastic Package
• Excellent Repeatability (Lot-to-Lot Variation)
• Typical Isolation: 23dB
• Typical Amplitude Balance: 0.8dB
• Typical Insertion Loss: 1.4dB


Pinout

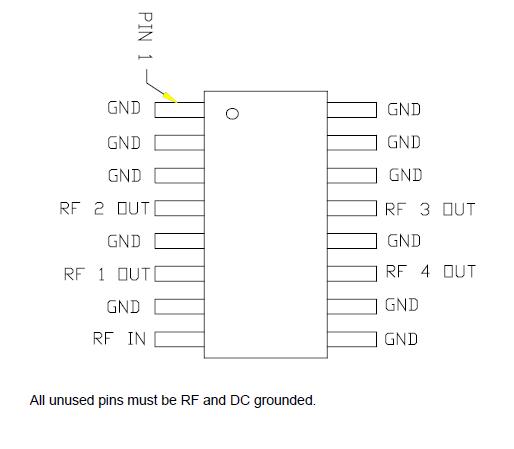

Connection Diagram


Specifications

Parameter Absolute Maximum
Input Power2
Operating Temperature
Storage Temperature

1 W CW

-40°C to +85°C

-65°C to +150°C




Description

splitter/combiner in a low cost SOIC-16 plastic package. This device is ideally suited for applications where PCB real estate is at a premium and standard packaging for automated assembly and low cost are critical. Typical applications include infrastructure, portables, and peripheral devices (PCMCIA cards) for wireless standards such as PCS, PCN, DECT, PHS, and DCS-1800. Available in Tape and Reel.

The DS54-0006 is fabricated using a passive-integrated circuit process. The process features full-chip passivation for increased performance and reliability.
