DS620

Features: * Low-Voltage Operation: 1.7V to 3.5V* 0.5°C Accuracy from 0°C to +70°C*Operating Temperature Range: -55°C to +125°C (-67°F to +257°F)*Temperature Measurements Require No External Components* Resolution is User-Selectable to 10-, 11-, 12-, or 13-Bits (0.5°C, 0.25°C, 0.125°C, and 0.0625°C...

product image

DS620 Picture
See larger image
SeekIC No. : 004329170 Detail

DS620: Features: * Low-Voltage Operation: 1.7V to 3.5V* 0.5°C Accuracy from 0°C to +70°C*Operating Temperature Range: -55°C to +125°C (-67°F to +257°F)*Temperature Measurements Require No External Componen...

DS620 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS620
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low-Voltage Operation: 1.7V to 3.5V
* 0.5°C Accuracy from 0°C to +70°C
*Operating Temperature Range: -55°C to +125°C (-67°F to +257°F)
*Temperature Measurements Require No External Components
* Resolution is User-Selectable to 10-, 11-, 12-, or 13-Bits (0.5°C, 0.25°C, 0.125°C, and 0.0625°C LSb Weight, Respectively)
* Multidroppable
* Fast (200ms max) Temperature-to-Digital Conversion Time
* Thermostatic Settings are User-Definable and Nonvolatile
*Standalone Thermostat Capability
*Data is Read/Written Through a 2-Wire Serial Interface
*Package: 8-Pin SOP


Application

Portable Applications
Low-Voltage Temperature-Sensitive Applications
Computers/Servers
Test Equipment
Medical Instruments
Industrial Applications

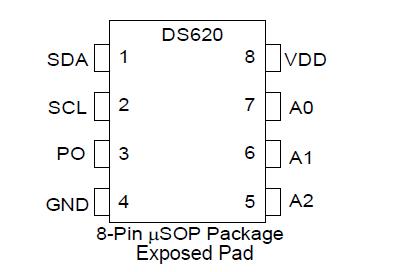

Pinout

Connection Diagram


Specifications

Voltage Range on Any Pin, Relative to Ground                           -0.5V to +4.5V
Operating Temperature Range                                            -55°C to +125°C
Storage Temperature Range                                               -55°C to +125°C
Soldering Temperature                      See IPC/JEDEC J-STD-020A Specification
ESD rating on all pins                                                                         4KV HBM


Description

The DS620 digital thermometer and thermostat provides low-voltage (1.7V  VDD 3.5V) temperature measurements with 0.5°C accuracy from 0°C to +70°C and an operating temperature range of -55°C o +125°C. The DS620 communicates over a 2-wire igital interface. For distributed-sensing applications, t is multidroppable with three address pins that allow
up to eight DS620s to operate on a single bus.

The DS620 has thermostat functionality with userdefined hresholds stored in EEPROM registers, and t can be configured for standalone thermostat peration. The programmable output (PO) pin serves s the thermostat output, and this pin can also be onfigured to function as an active-low control for peripheral devices.
