DS75161A

Features:

8-channel bi-directional non-inverting transceivers
Bi-directional control implemented with TRI-STATE^® output design
Meets IEEE Standard 488-1978
High-speed Schottky design
Low power consumption
High impedance PNP inputs (drivers)
500mV (typ) input hysteresis (receivers)
On-chip bus terminators
No bus loading when V_CC is removed
Pin selectable open collector mode on DS75160A driver outputs
Accommodates multi-controller systems


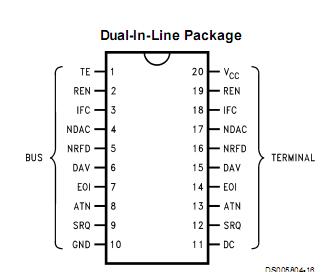

Pinout




Specifications

Supply Voltage, V_CC                                               7.0V
Input Voltage                                                         5.5V
Storage Temperature Range                −65˚C to+150˚C
Lead Temperature (Soldering, 4sec.)                   260˚C
Maximum Power Dissipation (Note1) at 25˚C
Molded Package                                              1897mW


Description

This family of high-speed-Schottky 8-channel bi-directional transceivers DS75161A is designed to interface TTL/MOS logic to the IEEE Standard 488-1978 General Purpose Interface Bus (GPIB).PNP inputs are used at all driver inputs for minimum loading,and hysteresis is provided at all receiver inputs for added noise margin.The IEEE-488 required bus termination is provided internally with an active turn-off feature which dis-connects the termination from the bus when V_CC is removed. The General Purpose Interface Bus is comprised of 16 sig-nallines-8 for data and 8 for interface management.The data lines are always implemented with DS75160A,and the management lines are either implemented with DS75161A in a single-controller system.
