Part Number: DS75176BT
Description: The DS75176B is a high speed differential TRI-STATE bus/line transceiver designed to meet the requirem...
- Table of contents:
DS75176BT
-
Suppliers
DataSheet
General Description
DS75176BT General Description
The DS75176B is a high speed differential TRI-STATE bus/line transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range (+12V to -7V), for multipoint data transmission. In addition, it is compatible with RS-422.
The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common mode range of +12V to -7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state. DC specifications are guaranteed over the 0 to 70 temperature and 4.75V to 5.25V supply voltage range.
DS75176BT Maximum Ratings
Supply Voltage, VCC........................................................ 7V
Control Input Voltages ....................................................7V
Driver Input Voltage........................................................ 7V
Driver Output Voltages..................................... +15V/ −10V
Receiver Input Voltages (DS75176B)................ +15V/ −10V
Receiver Output Voltage............................................... 5.5V
Continuous Power Dissipation @25°C
for M Package 675 mW (Note 5)
for N Package 900 mW (Note 4)
Storage Temperature Range................. −65°C to +150°C
Lead Temperature
(Soldering, 4 seconds) ..............................................260°C
Supply Voltage, VCC........................................... 4.75 5.25 V
Voltage at Any Bus Terminal ..................................−7 +12 V
(Separate or Common Mode)
Operating Free Air Temperature TA
DS75176B............................................................. 0 +70 °C
DS75176BT .......................................................−40 +85 °C
Differential Input Voltage,
VID (Note 6) .........................................................−12 +12 V
Control Input Voltages ....................................................7V
Driver Input Voltage........................................................ 7V
Driver Output Voltages..................................... +15V/ −10V
Receiver Input Voltages (DS75176B)................ +15V/ −10V
Receiver Output Voltage............................................... 5.5V
Continuous Power Dissipation @25°C
for M Package 675 mW (Note 5)
for N Package 900 mW (Note 4)
Storage Temperature Range................. −65°C to +150°C
Lead Temperature
(Soldering, 4 seconds) ..............................................260°C
Supply Voltage, VCC........................................... 4.75 5.25 V
Voltage at Any Bus Terminal ..................................−7 +12 V
(Separate or Common Mode)
Operating Free Air Temperature TA
DS75176B............................................................. 0 +70 °C
DS75176BT .......................................................−40 +85 °C
Differential Input Voltage,
VID (Note 6) .........................................................−12 +12 V
DS75176BT Features
*Meets EIA standard RS485 for multipoint bus transmission and is compatible with RS-422.
*Small Outline (SO) Package option available for minimum board space.
* 22 ns driver propagation delays.
*Single +5V supply.
* −7V to +12V bus common mode range permits ±7V ground difference between devices on the bus.
*Thermal shutdown protection.
* High impedance to bus with driver in TRI-STATE or with power off, over the entire common mode range allows the unused devices on the bus to be powered down.
* Pin out compatible with DS3695/A and SN75176A/B.
*Combined impedance of a driver output and receiver input is less than one RS485 unit load, allowing up to 32 transceivers on the bus.
*70 mV typical receiver hyster
*Small Outline (SO) Package option available for minimum board space.
* 22 ns driver propagation delays.
*Single +5V supply.
* −7V to +12V bus common mode range permits ±7V ground difference between devices on the bus.
*Thermal shutdown protection.
* High impedance to bus with driver in TRI-STATE or with power off, over the entire common mode range allows the unused devices on the bus to be powered down.
* Pin out compatible with DS3695/A and SN75176A/B.
*Combined impedance of a driver output and receiver input is less than one RS485 unit load, allowing up to 32 transceivers on the bus.
*70 mV typical receiver hyster
DS75176BT
PDF/DataSheet Download
- Datasheet: DS75176BT
- File Size: 242789 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·DS7
- Linear
- A Low Cost Dynamic VID Power Supply for Pentium? III Processors
- 68288 KB
- ·DS75
- DALLAS [Dallas Semiconducotr]
- 2.Wire Thermal Watchdog
- 246340 KB
- ·DS75-08B
- IXYS [IXYS Corporation]
- Rectifier Diode Avalanche Diode
- 42406 KB
- ·DS75107
- NSC [National Semiconductor]
- Dual Line Receivers
- 232715 KB
- ·DS75107AM
- NSC [National Semiconductor]
- Dual Line Receivers
- 183055 KB
- ·DS75107AN
- NSC [National Semiconductor]
- Dual Line Receivers
- 183055 KB
- ·DS75107J
- NSC [National Semiconductor]
- Dual Line Receivers
- 183055 KB
- ·DS75107M
- NSC [National Semiconductor]
- Dual Line Receivers
- 232715 KB
DS75176BT Relative Products

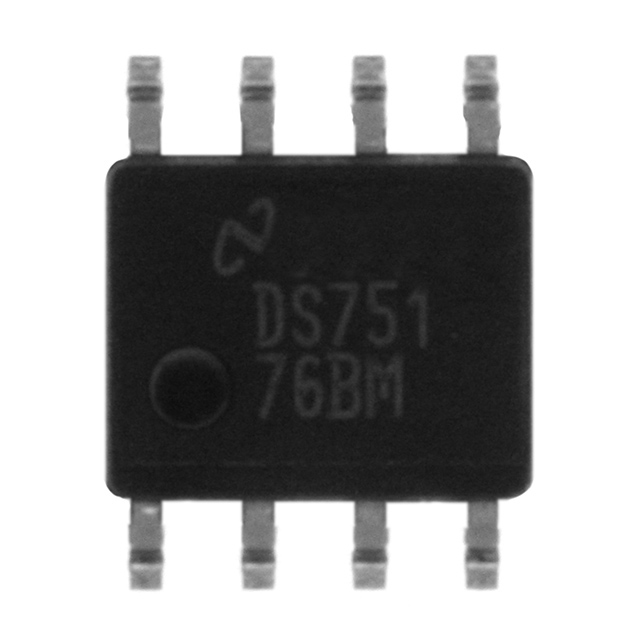

DS75176BMX/NOPB
