DSD1796

Features:

`Supports Both DSD and PCM Formats
`24-Bit Resolution
`Analog Performance:
− Dynamic Range: 123 dB
− THD+N: 0.0005%
`Differential Current Output: 4 mA p-p
`8* Oversampling Digital Filter:
− Stop-Band Attenuation: 98 dB
− Pass-Band Ripple: ±0.0002 dB
`Sampling Frequency: 10 kHz to 200 kHz
`System Clock: 128, 192, 256, 384, 512, or 768 f<sub>S</sub> With Autodetect
`Accepts 16-, 20-, and 24-Bit Audio Data
`PCM Data Formats: Standard, I<sup>2</sup>S, and Left-Justified
`DSD Format Interface Available
`Interface Available for Optional External
`Digital Filter or DSP
`TDMCA Interface Available
`User-Programmable Mode Controls:
− Digital Attenuation: 0 dB to 120 dB, 0.5 dB/Step
− Digital De-Emphasis
− Digital Filter Rolloff: Sharp or Slow
− Soft Mute
`Compatible With DSD1792 (Pins and Mode Controls)
`Dual Supply Operation:
− 5 V Analog, 3.3 V Digital
`5-V Tolerant Digital Inputs
`Small 28-Lead SSOP Package, Lead-Free Product


Application

·A/V Receivers
·SACD Players
·DVD Players
·HDTV Receivers
·Car Audio Systems
·Digital Multi-Track Recorders
·Other Applications Requiring 24-Bit Audio

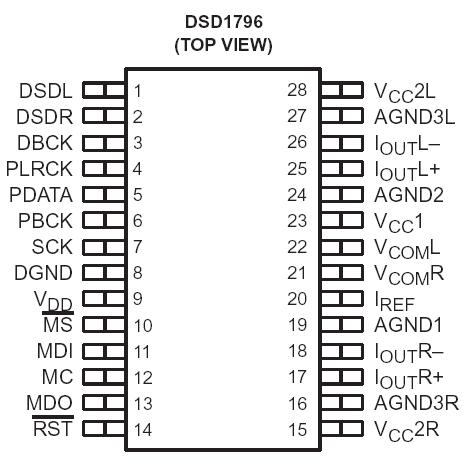

Pinout




Specifications

		DSD1796
Supply voltage	VCC1, VCC2L, VCC2R	−0.3 V to 6.5 V
	VDD	−0.3 V to 4 V
Supply voltage differences	VCC1, VCC2L, VCC2R	±0.1 V
Ground voltage differences	AGND1, AGND2, AGND3L, AGND3R, DGND	±0.1 V
Digital input voltage	PLRCK, PDATA, PBCK, SCK, RST, MS(2), MDI, MC, DSDL(2), DSDR(2), DBCK	0.3 V to 6.5 V
	DSDL(3), DSDR(3), MS(3), MDO	0.3 V to (VDD + 0.3 V) < 4 V
Analog input voltage		0.3 V to (VCC + 0.3 V) < 6.5 V
Input current (any pins except supplies)		±10 mA
Ambient temperature under bias		40°C to 125°C
Storage temperature		55°C to 150°C
Junction temperature		150°C
Lead temperature (soldering)		260°C, 5 s
Package temperature (IR reflow, peak)		260°C

Description

The DSD1796 is a monolithic CMOS integrated circuit that includes stereo digital-to-analog converters and support circuitry in a small 28-lead SSOP package. The data converters use TI's advanced-segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.

The DSD1796 provides balanced current outputs, allowing the user to optimize analog performance externally. The DSD1796 accepts the PCM and DSD audio data formats, providing easy interfacing to audio DSP and decoder chips. The DSD1796 also interfaces with external digital filter devices (DF1704, DF1706, PMD200). Sampling rates up to 200 kHz are supported. A full set of user-programmable functions is accessible through an SPI serial control port, which supports register write and readback functions. The DSD1796 also supports the time-division-multiplexed command and audio (TDMCA) data format.
