DSP1N5D12

Mounting Style :
Product : Isolated
Output Power : 1 W
Number of Outputs : 2
Output Voltage (Channel 2) : - 12 V
Input Voltage Range : 4.5 V to 5.5 V
Input Voltage (nominal) : 5 V
Package / Case Size : SIP
Output Voltage (Channel 1) : + 12 V
Output Current (Channel 1) : + 40 mA
Output Current (Channel 2) : - 40 mA


Features:

• Up to 1 Watt Unregulated Output Power
• Single In Line Package
• Four Terminal Operation
• Efficiencies to 70%
• Output Voltages: 5V, 7V, 12V, 14V, 15V, 17V
• 700V Isolation
• -40°C to +85°C Operation

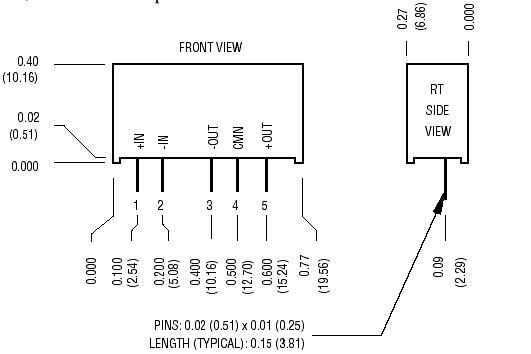

Pinout




Description

The DSP1 Series is specifically designed to convert a nominal 5 volt input into two isolated output voltages. The dual semiregulated output voltages are designed to allow analog circuits and three terminal regulators to operate within their most efficient input voltage range. This series achieves high power densities through the use of 350KHz fixed frequency switching converters.


Parameters:

Technical/Catalog Information	DSP1N5D12
Vendor	Power-One
Category	Power Supplies
Voltage - Input	5VDC
Output	±12V
Power (Watts)	1W
Number of Outputs	2
1st Output	12 VDC @ 40mA
2nd Output	-12 VDC @ 40mA
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	Bulk
Package / Case	4-SIP
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	DSP1N5D12 DSP1N5D12 179 1076 ND 1791076ND 179-1076
