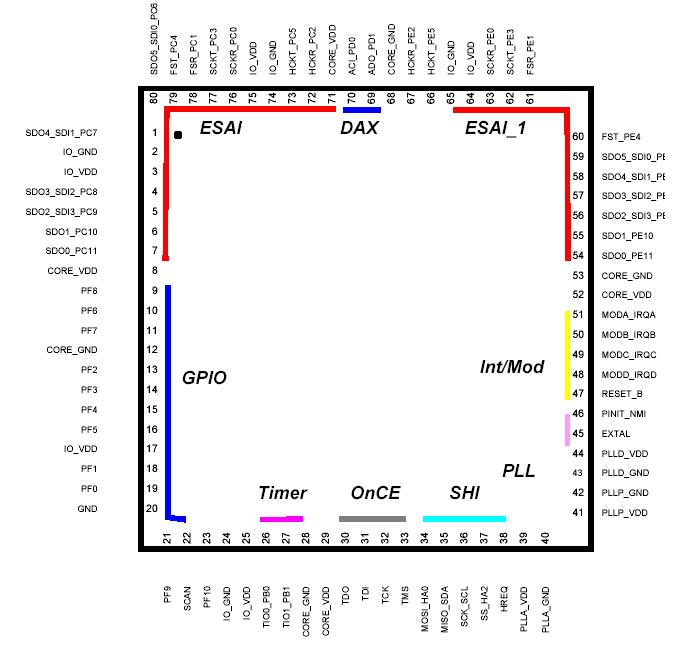

PinoutSpecifications Rating1 Symbol Value1, 2 Unit Supply Voltage VCORE_VDD,VPLLD_VDD −0.3 to + 1.6 V VPLLP_VDD,VIO_VDD,VPLLA_VDD, −0.3 to + 4.0 V All 5.0V tolerant input voltages VIN GND − 0.3 to 5.5V V Current drain per pin excluding VDD and GND(Ex...
DSP56371D: PinoutSpecifications Rating1 Symbol Value1, 2 Unit Supply Voltage VCORE_VDD,VPLLD_VDD −0.3 to + 1.6 V VPLLP_VDD,VIO_VDD,VPLLA_VDD, −0.3 to + 4.0 V All 5.0V toleran...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Rating1 | Symbol | Value1, 2 | Unit |
Supply Voltage | VCORE_VDD, VPLLD_VDD |
−0.3 to + 1.6 | V |
VPLLP_VDD, VIO_VDD, VPLLA_VDD, |
−0.3 to + 4.0 | V | |
All "5.0V tolerant" input voltages | VIN | GND − 0.3 to 5.5V | V |
Current drain per pin excluding VDD and GND (Except for pads listed below) |
I | 12 | mA |
SCK_SCL | ISCK | 16 | mA |
ACI_PD0,ADO_PD1 | IDAX | 24 | mA |
TDO | Ijtag | 24 | mA |
Operating temperature range3 | TJ | -40 to +115 | °C |
Storage temperature | TSTG | −55 to +125 | °C |
